| Construction | Material: | Aluminium alloy body , Stainless steel bezel |

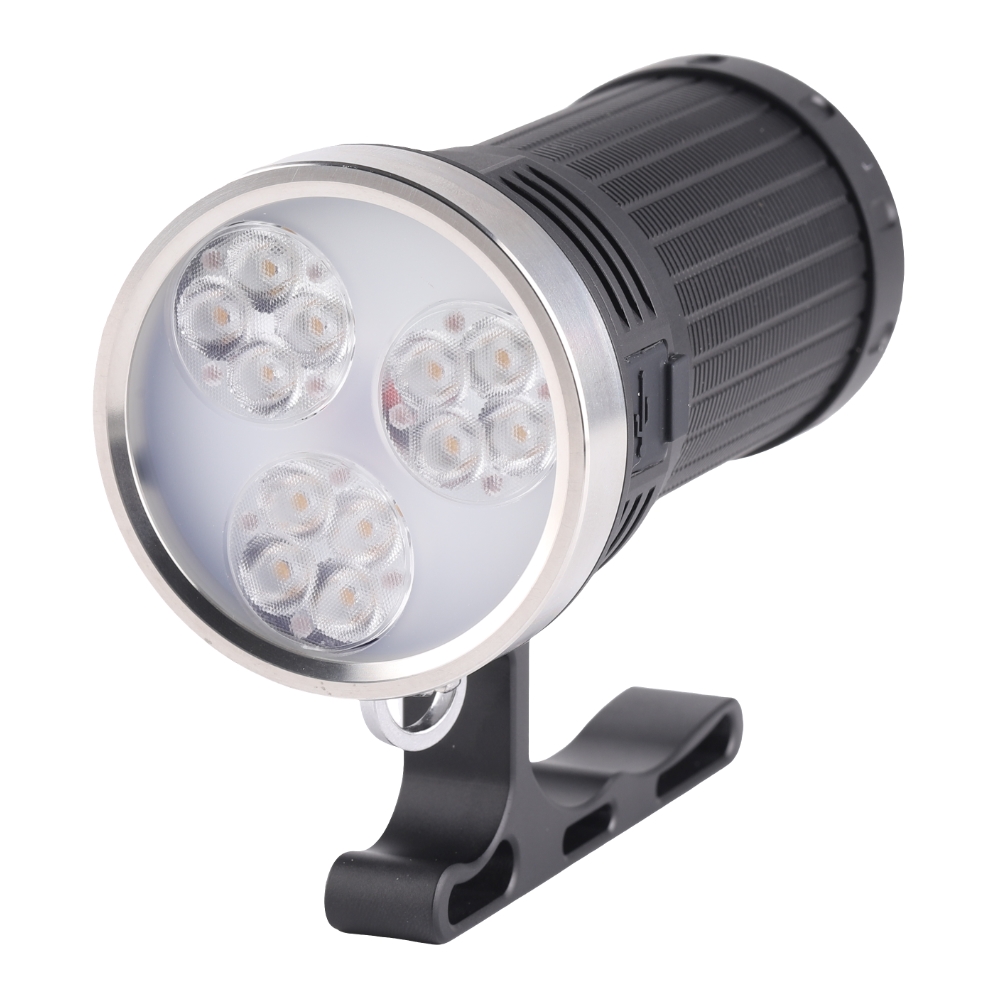

| Lens type: | 3 pieces 10degree bead lens and 1 piece ar-coated glass lens | |
| LED MCPCB: | made of copper. 57mm diameter DTP thermally conductive structure. 3.0 W/(m·K) thermal grease below the MCPCB. |
|
| Head structure: | integrated type (Best structure for conducting heat, but please note that fast heat transfer does not mean fast heat dissipation, which depends on the surface area of the flashlight.) | |
| Switch: | The electronic switch is located on the side of the head, pay attention to the flashlight using the electronic switch has standby current, if it is possible that you will not use the flashlight for more than a week, please loosen the tail of the flashlight to avoid the risk of battery damage. | |

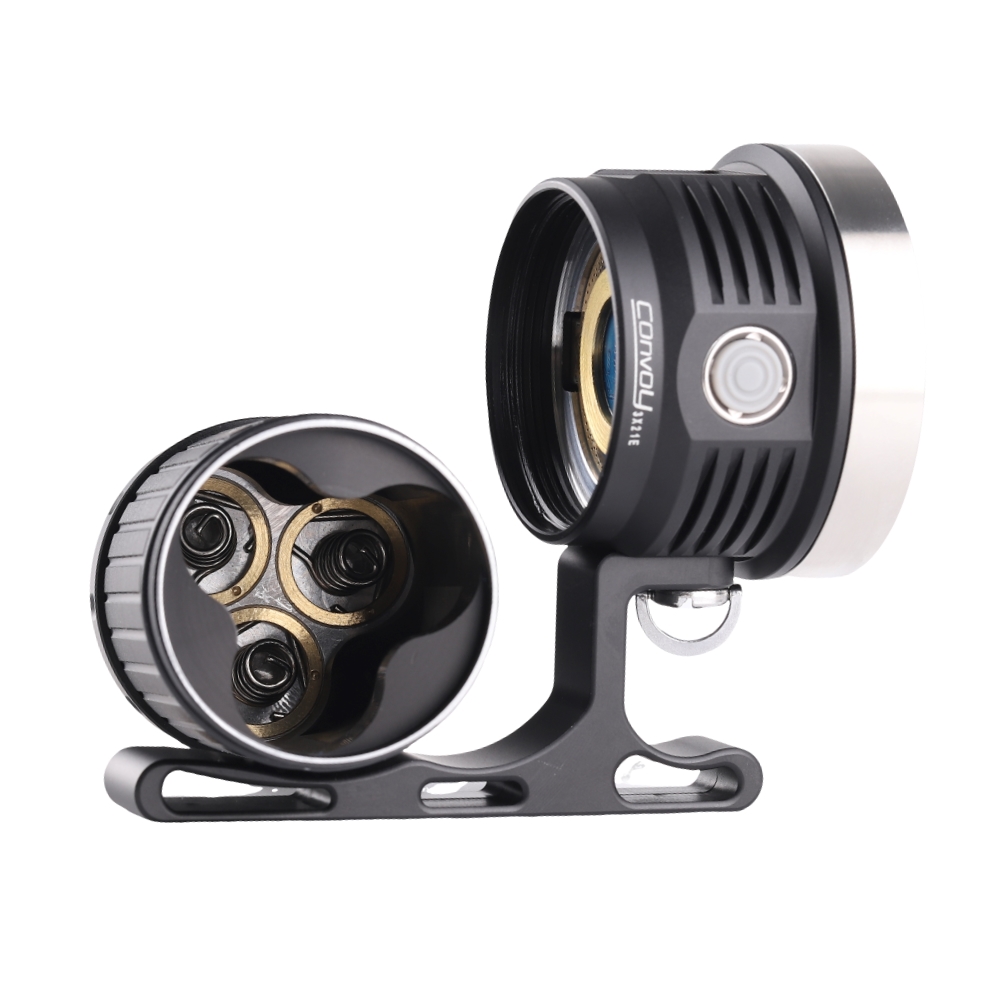

| Tail: | 3 pieces nickel-plated phosphor copper spring inside, each one can bear 20A current. | |
| Electro&optical parameters | Driver output: | FET , Max current output 54A |
| Driver efficiency: | >85% | |
| Charging: | 5V 3A Type-C port | |
| Mode: | See below for details | |
| Flux: | max 12000LM | |
| Illumination distance: | < 100 meters (estimated by the naked eye, data for reference) | |
| ? (ANSI standard) | ||
| Runtime: | ? | |
| Related features | Low voltage warning: | Yes |
| Reverse polarity protection: | No, Make sure that the positive poles of all batteries are facing the head of the flashlight. | |
| Reverse charging function |
No | |
| Mode memory: | Yes | |
| Temperature control function： | Yes , As the temperature rises, the current will drop slowly, but this does not mean that the surface of the flashlight will not heat up.When the flashlight works for a long time under the maximum brightness, the surface temperature will rise to 80-90 degrees Celsius, please be careful of burns. | |
| Tailstand: | Yes | |
| About the battery | Battery included: | No |
| Required battery type: | INR or IMR 21700 lithium battery (can bear 20A or more) | |
| Required battery quantity | 3 pieces | |
| Size & weight | Length: | 124.5mm |
| Diameter: | head 65mm , body 51.5mm | |
| Weight: | flashlight 410g , handle 43g gross weight 534g (include package) |
|

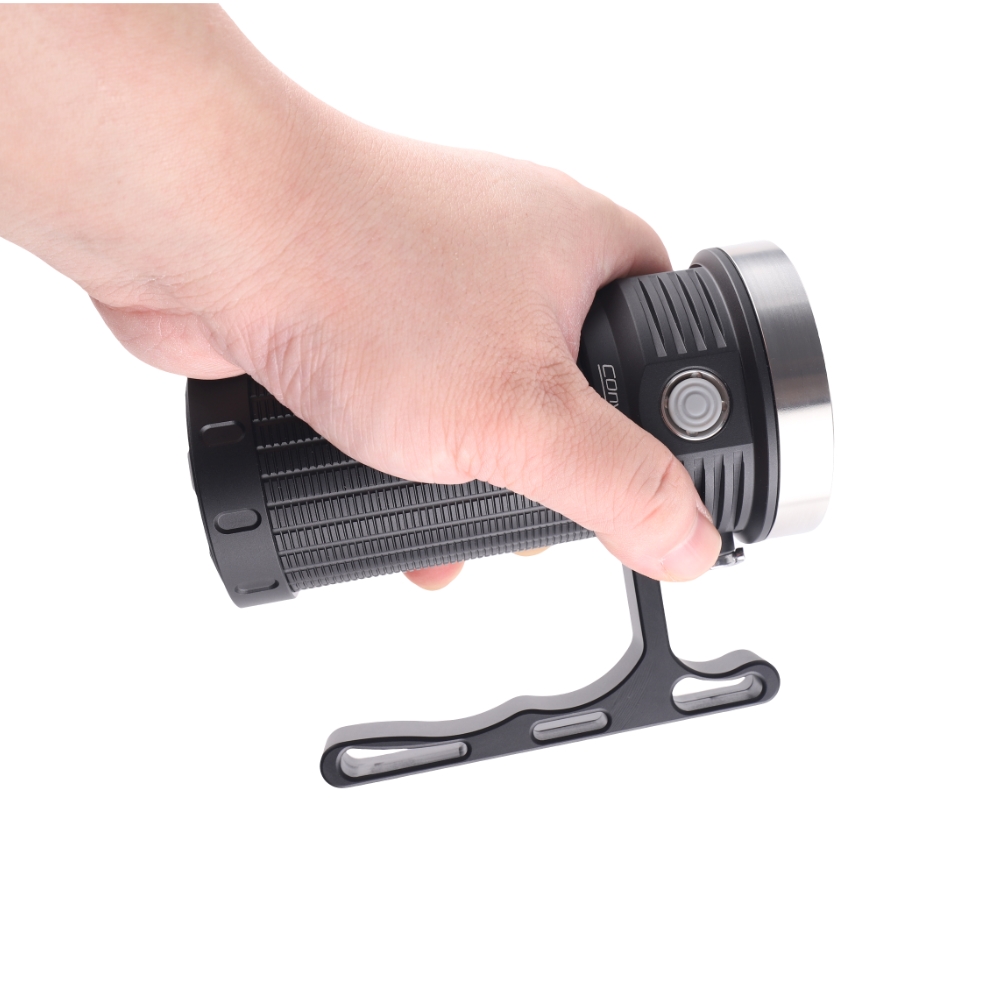

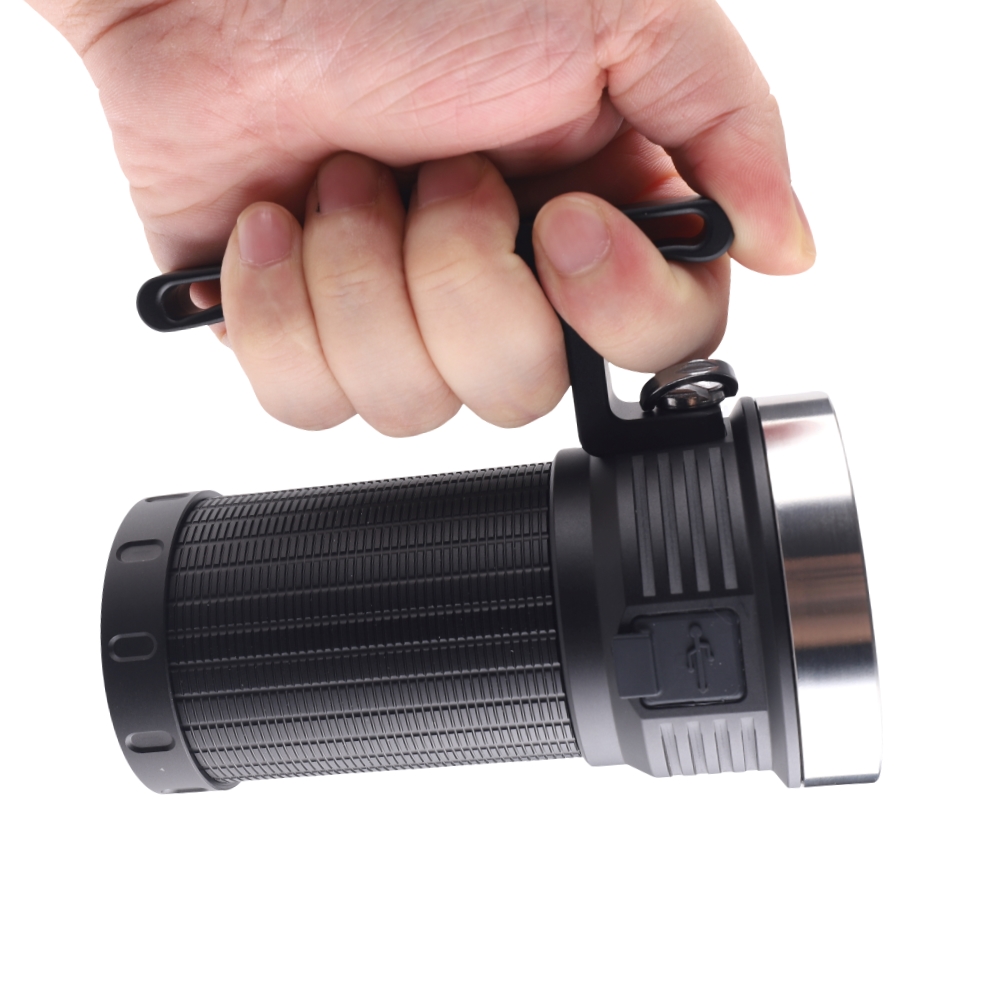

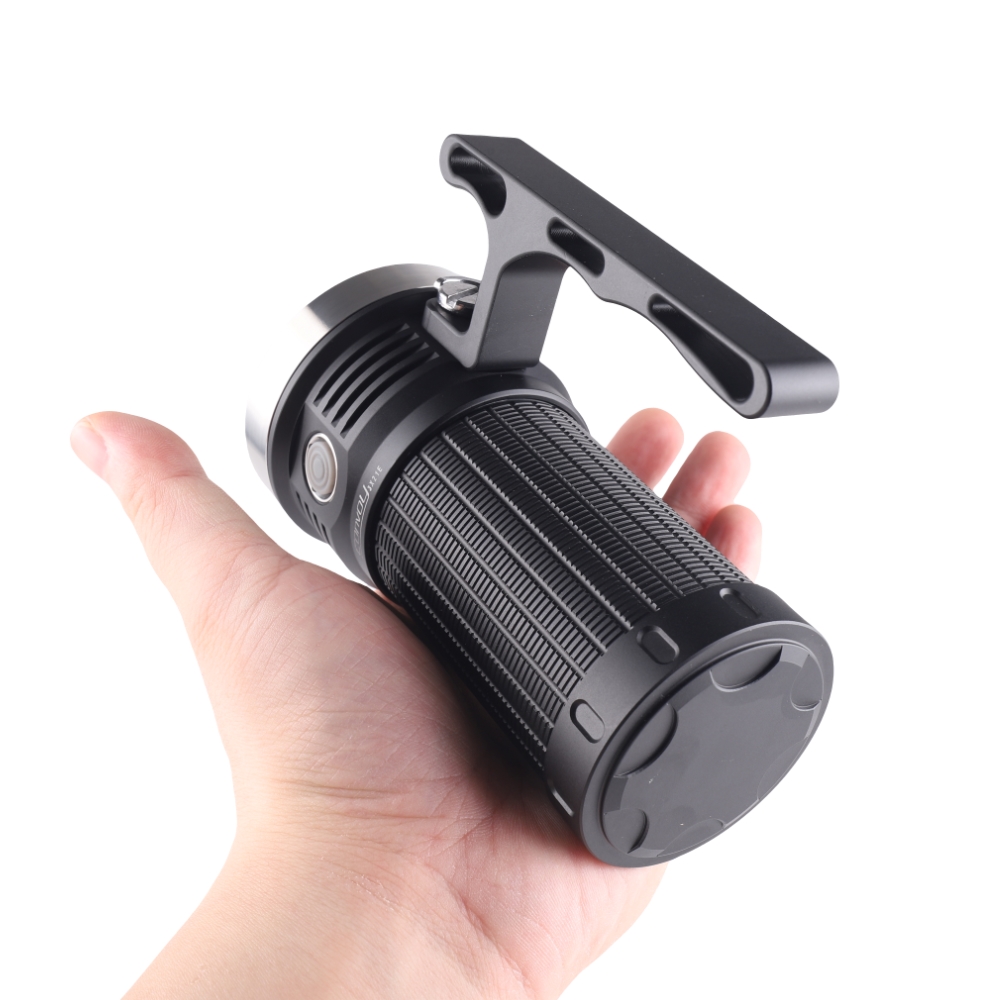

| Accessory: | 1* handle | |
Drive mode operation specification:
1.click the button ——> flashlight is turned on with last brightness ——> press the button,brightness ramping up ——> release and press the button again,brightness ramping down
2.flashlight on or off, 2-click the button ——> turbo 100%
3.flashlight off,3-click the button ——> strobe
4.flashlight off,4-click the button ——> tactical mode, only 100% ,4-click the button again to quit tactical mode.
5.flashlight off,5-click the button ——> voltage detection (* means “flash” , *** pause ******* means 3.7V, )
6.flashlight off,6-click the button ——> normal ramping mode switch to 4modes 1%-10%-40%-100%
7.flashlight off,10-click the button ——> Lock mode,The flashlight will flash once under any operation, which means the flashlight is locked.10-click the button again to quit lock mode,Please note that this is the only way to unlock.
The flashlight has low voltage protection and temperature control protection.
