Parameters:
Material: Aluminum alloy
Lens: ar-coated glass lens

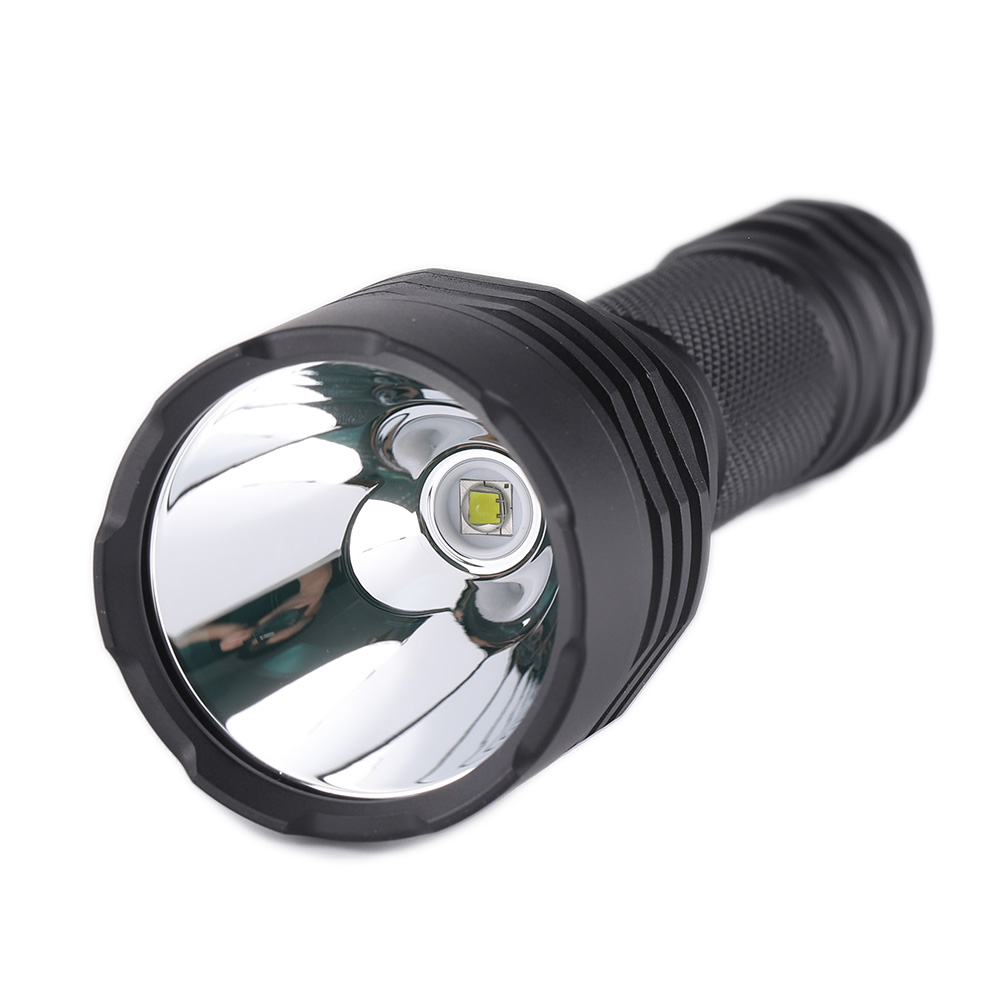

Reflector type : smooth for SST40 , SFT40 , 519A , SST20 , 219 , LH351D , LMP LML2AW.DC , XPL HI , 719A , GT LED
smooth for all osram LEDs (KW CSLNM1.TG , KR CSLNM1.23, etc. )
orange peel for B35AM , SST70 , XHP50 , XHP70 , SFT70
Driver: See below for details.

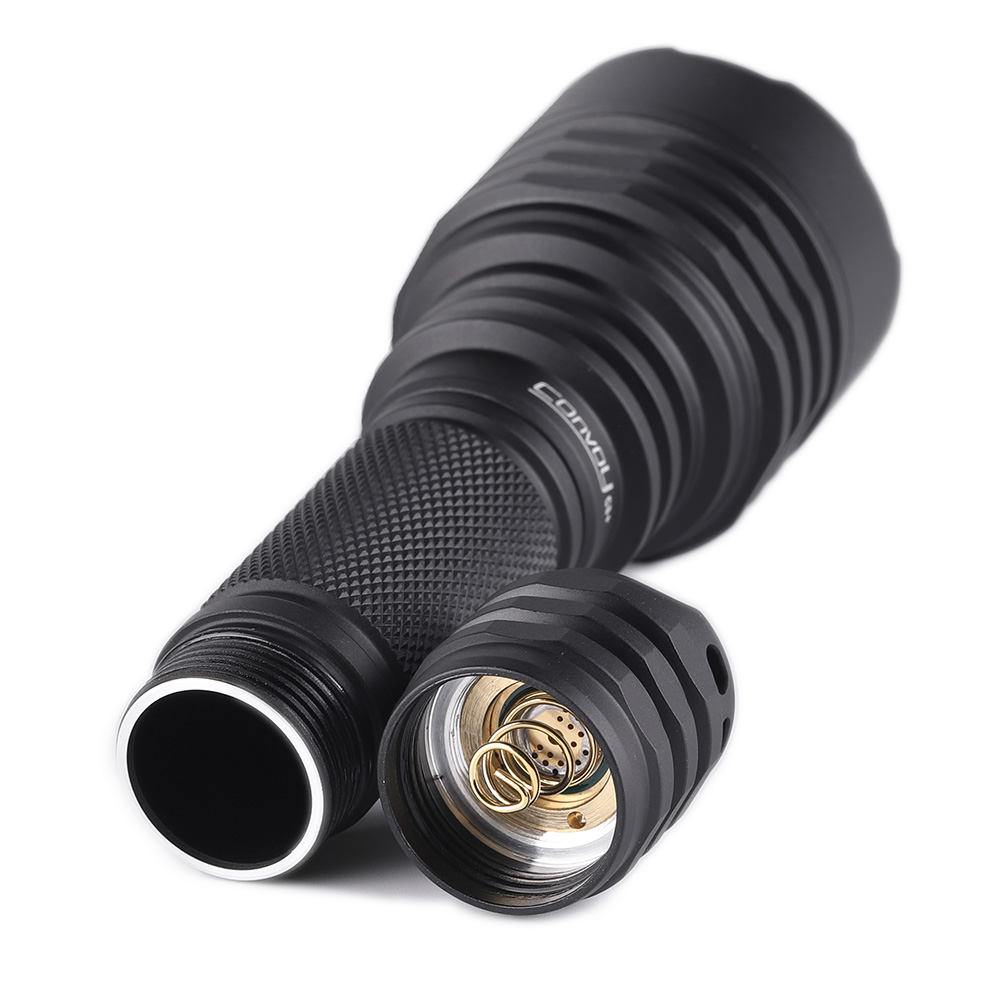

Tail spring: Phosphor copper gold plated. Can withstand the maximum current of 10A
Low voltage warning: Yes
Reverse polarity protection: Yes
Mode memory: 4modes and 12groups drivers have mode memory
Temperature control function: Yes except for ramping, As the temperature rises, the current will drop slowly, but this does not mean that the surface of the flashlight will not heat up.
Tailstand: Yes
Battery : C8+ runs on 1pcs INR or IMR18650 unprotected lithium battery ,notice that battery is not included
Mode memory: 4modes and 12groups drivers have mode memory
Temperature control function: Yes except for ramping, As the temperature rises, the current will drop slowly, but this does not mean that the surface of the flashlight will not heat up.
Tailstand: Yes
Battery : C8+ runs on 1pcs INR or IMR18650 unprotected lithium battery ,notice that battery is not included
Diameter of head : 44.5mm
Length : 142mm
Diameter of body : 25.2mm
Weight : 145g
Accessory: 1*lanyard
4 modes
0.1%-3%-30%-100%
0.1%-3%-30%-100%
12 groups:
1.click the switch to turn the flashlight on/off,tap the switch to select mode
2.if flashlight is turned on,tap the switch 20 times quickly to enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and “tap the switch in the flashing process” means to select the option.)
Option 1 (normal-flash 1 time + buzz-flash): tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.
————-sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (0.1%, 1%, 10%, 35%, 100%, strobe, biking, battery-check)
————-sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (0.1%, 1%, 10%, 35%, 100%)
————-sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%, 35%, 10%, 1%, 0.1%)
————-sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (1%, 20%, 100%, strobe, biking, battery-check, SOS)
————-sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (1%, 20%, 100%)
————-sub-option 1.6 (normal-flash 6 times) : tap the switch to select mode group 6 (100%, 20%, 1%)
————-sub-option 1.7 (normal-flash 7 times) : tap the switch to select mode group 7 (0.1%, 1%, 10%, 50%, strobe, biking, battery-check, SOS)
————-sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8(0.1%, 1%, 10%, 50%)
————-sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (50%, 10%, 1%, 0.1%)
————-sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (1%, 10%, 35%, 100%)
————-sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11 (100%, 20%, strobe)
————-sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100% only)
Option 2 (normal-flash 2 times + buzz-flash): tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.
battery-check instructions:
<2.95V 1 flash,
2.95-3.25V 2 flashes,
3.25-3.55V 3 flashes,
3.55-3.85V 4 flashes,
>3.85V 5 flashes
Ramping mode
1st Mode – 100% Brightness (one tap of the switch to select)
2nd Mode – 35% Brightness (two quick taps)
3rd Mode – Strobe (three quick taps)
Switching on the flashlight will always start in the 1st Mode
For the 1st and 2nd Modes, tap the switch quickly 5 times to enter into a config menu. The brightness will start to smoothly adjust, tap the switch once to set the desired level of brightness. The light will flash once to indicate you’ve reached the highest brightness. If the switch isn’t pressed at the highest brightness it’ll change to the lowest level and begin to smoothly increase in brightness again.
For the 3rd Mode, tap the switch quickly 5 times to enter into a special config menu. The light will slowly blink, tap the switch to set the desired mode. Each blink represents the following modes
– 1. 1% Brightness
– 2. 100% Brightness
– 3. Strobe 100%
– 4. Beacon 100%
– 5. Slow Flash
– SOS 40% (no blink, it chooses automatically if an above mode isn’t selected)
Factory Reset:
8 quick taps in any mode will restore the flashlight to the default settings.
5 groups [ without mode memory ]
1.click the switch to turn the flashlight on/off,tap the switch to select mode
2.if flashlight is turned on,tap the switch 20 times quickly to enter into config mode.
————-sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (100%)
————-sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (100%-20%)
————-sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%-strobe)
————-sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (20%-100%)
————-sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (strobe-100%)
