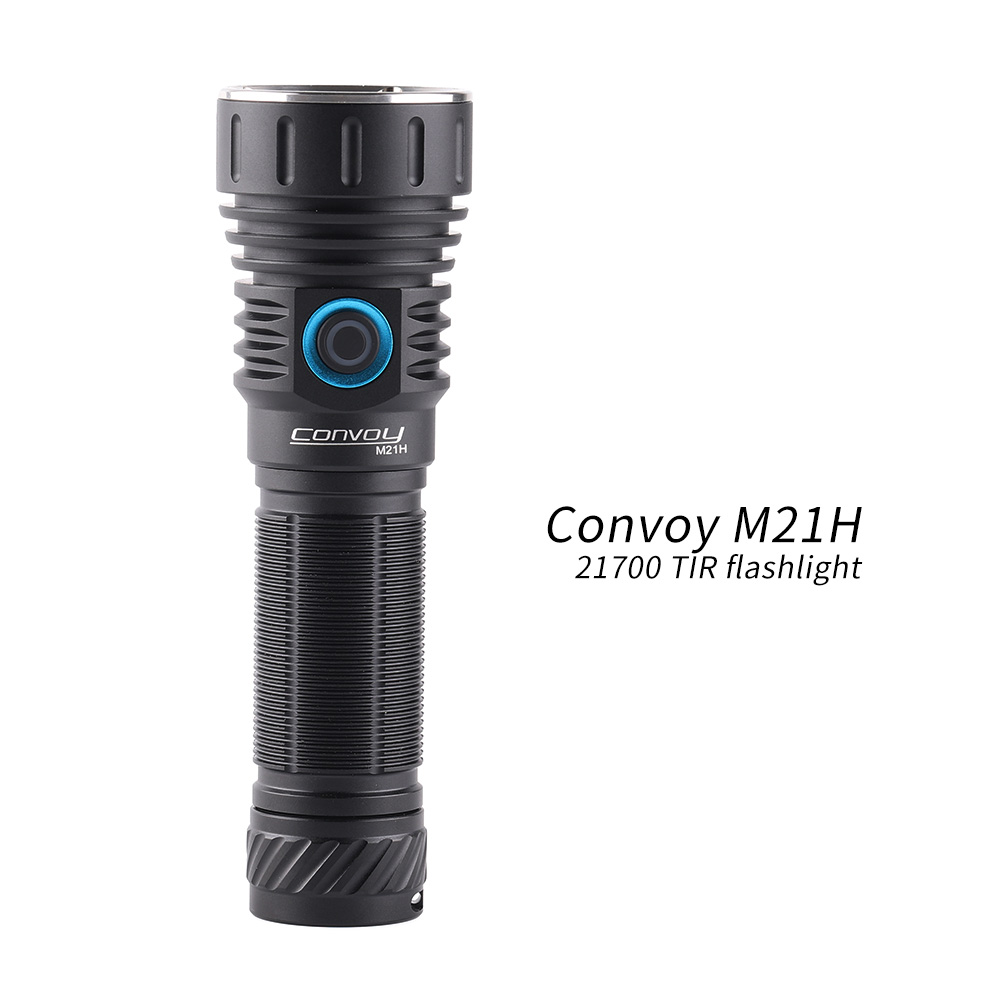

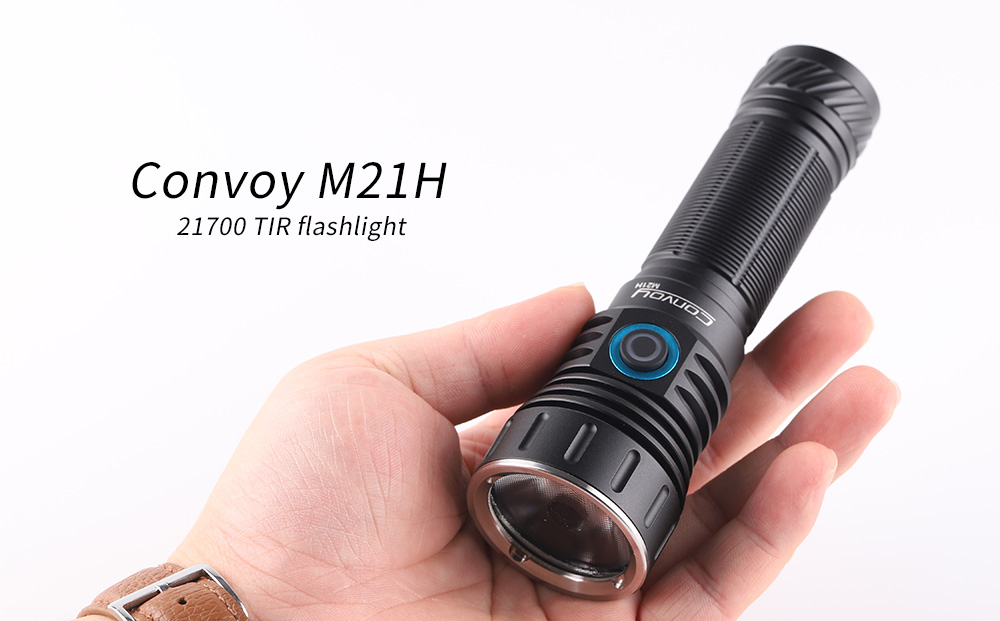

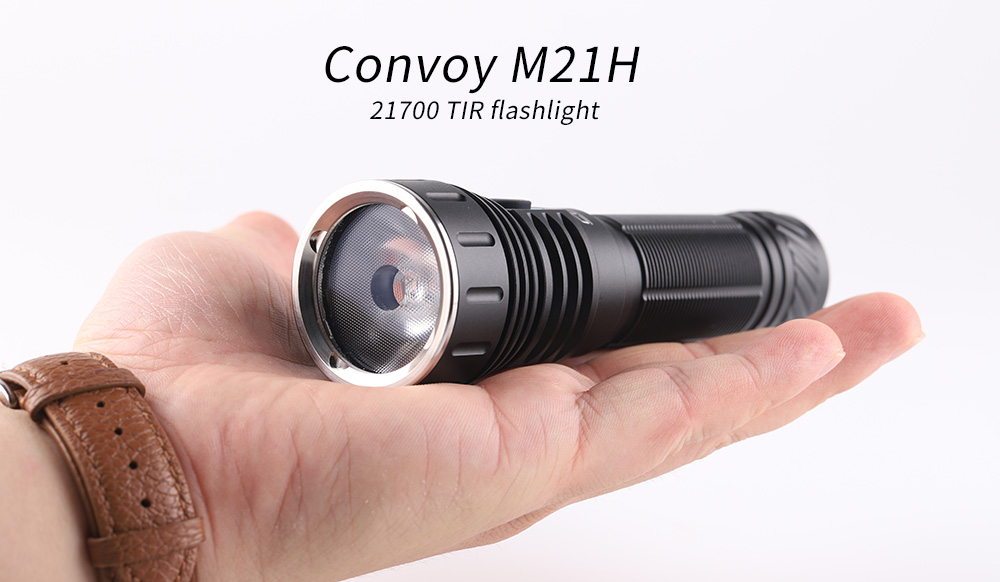

Convoy M21H 21700 flashlight

Parameters:

Material: aluminum alloy

Low voltage warning: yes

Reverse polarity protection: yes

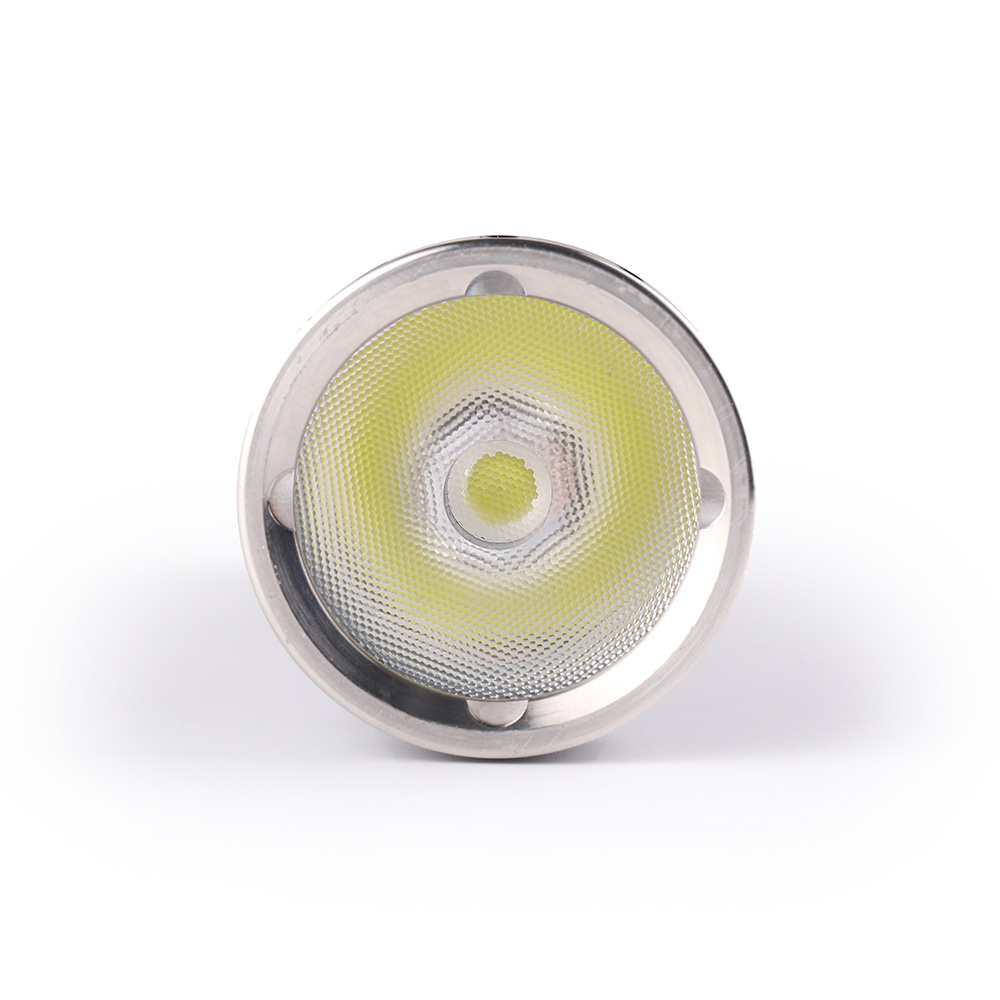

Lens Type: ar-coated glass lens ,3degree TIR  for SFT40, 12 degree TIR for other LED modes

Switch position: side

Mode memory: yes

Tail stand: yes

Driver output :

                     6V 5A for XHP70.2,XHP70.3 Hi

                     12V 2.5A for GT FC40
                     3V 8A for GT red/green/blue light

Flux:

                     XHP70.2,XHP70.3 Hi R70— 4000LM

                     XHP70.3 Hi R9050—3000LM

                     GT FC40 — 2500LM

Maximum charging current: 2A

Battery charger includes: not included

Battery type required: 1*21700 standard battery

Number of batteries required: 1

Size: Head/body/tail diameter: 40mm/27mm/28.5mm

length: 130.8mm

Product weight: 132g







Mode operation instructions:

1.click the button  ——>  flashlight is turned on with last brightness ——> press the button,brightness ramping up ——> release and press the button again,brightness ramping down

2.flashlight off, press the button  ——>  moonlight mode  (0.2%)   [This brightness will not be remembered]

3.flashlight on or off, 2-click the button  ——>  turbo 100%

4.flashlight off,3-click the button   ——>  strobe

5.flashlight off,4-click the button   ——>  tactical mode, only 100% ,4-click the button again to quit tactical mode.

6.flashlight off,5-click the button   ——>  voltage detection  (* means “flash” ,  *** pause ******* means 3.7V, )

7.flashlight off,6-click the button   ——>  normal ramping mode switch to 4modes 1%-10%-40%-100%

8.flashlight off,10-click the button   ——>  Lock mode,The flashlight will flash once under any operation, which means the flashlight is locked.10-click the button again to quit lock mode,Please note that this is the only way to unlock.



The flashlight has low voltage protection and temperature control protection.
