Why use boost buck driver circuit?
Because the voltage of UV LED is about 3.8V, and the battery will change from 4.2V to 3.0V during use, in order to achieve the maximum brightness output under any circumstances, we use boost & buck, and compared with the previous linear driver, its efficiency is much higher, which will make the heat smaller and the working time of the flashlight longer
PARAMETER
Material: Aluminum Alloy

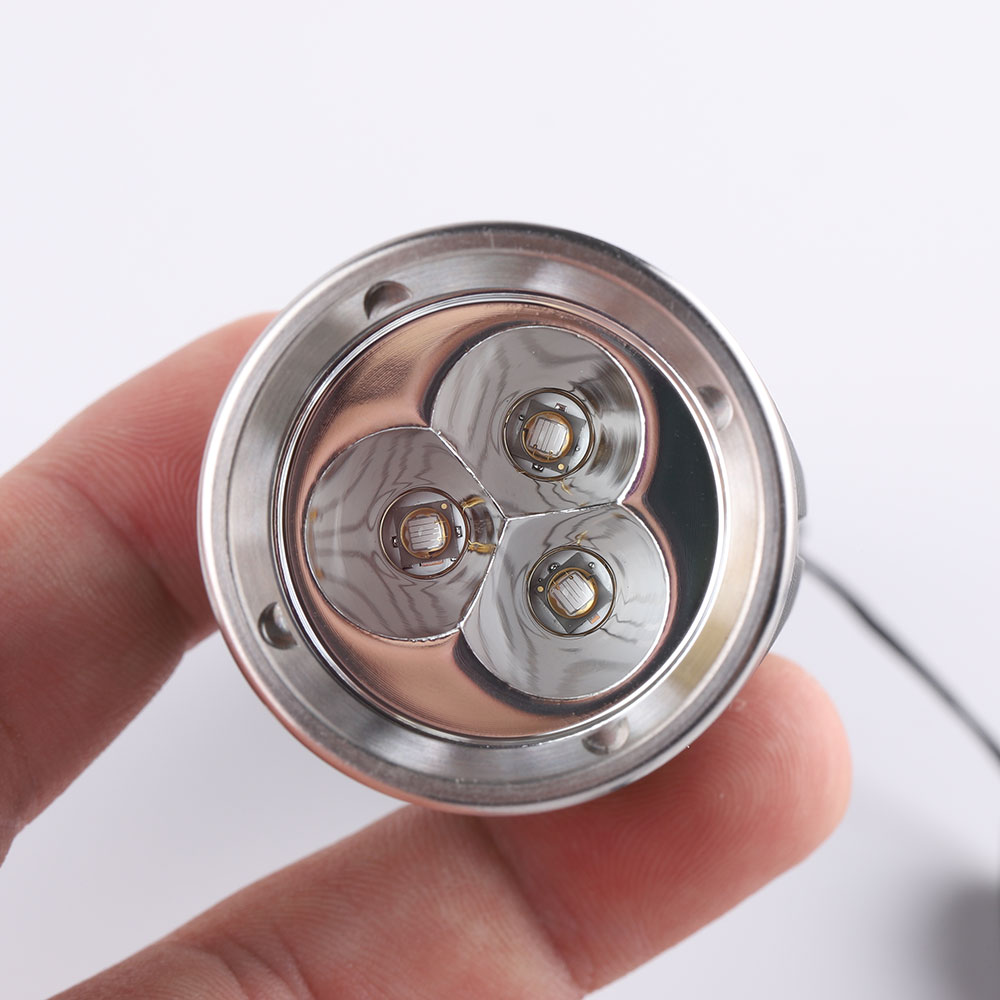

LED: Seoul CUN66A1G
Driver: linear driver 2 modes 10%-100% max current output 2.4A, Temperature protection management inside

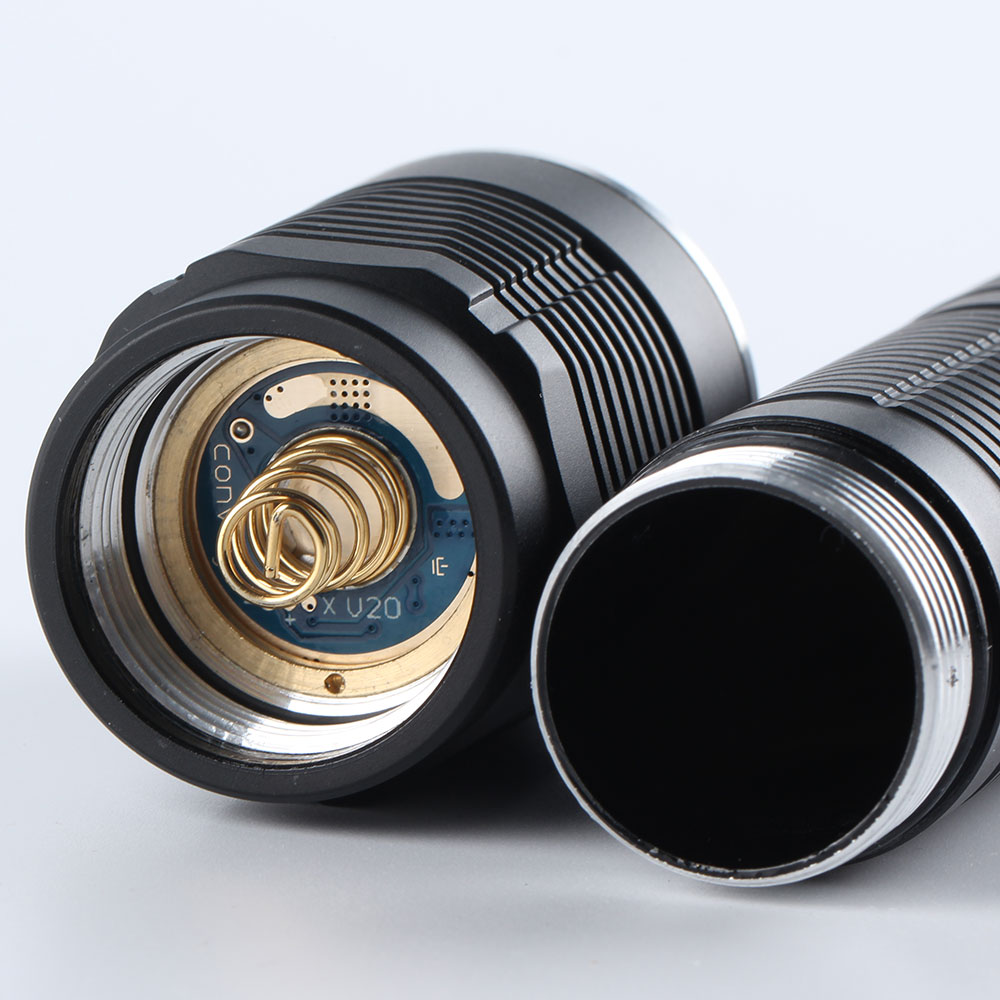

constant driver boost&buck 3 modes 5%-30%-100% max current output 3A, Temperature protection management inside
Low voltage warning: Yes
Reverse polarity protection: Yes
Lens type: ar-coated glass
Reflector: smooth
Mode memory: Yes
Tailstand: Yes
Battery included: No
Required battery type: unprotected 21700 lithium battery
Required battery quantity: 1pcs
Diameter(Head/Body): 34.6 / 27.4 mm
Length: 134 mm
Weight: 124g
