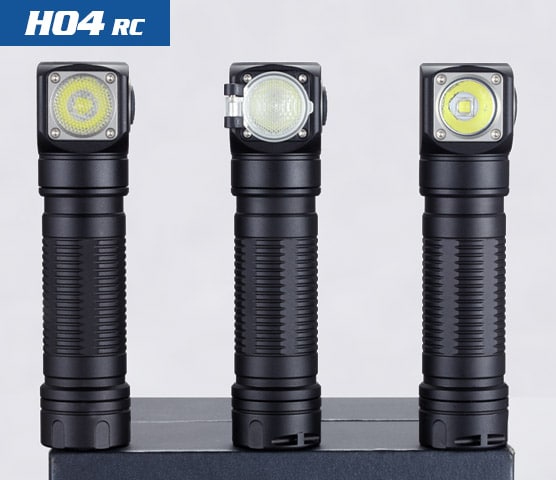

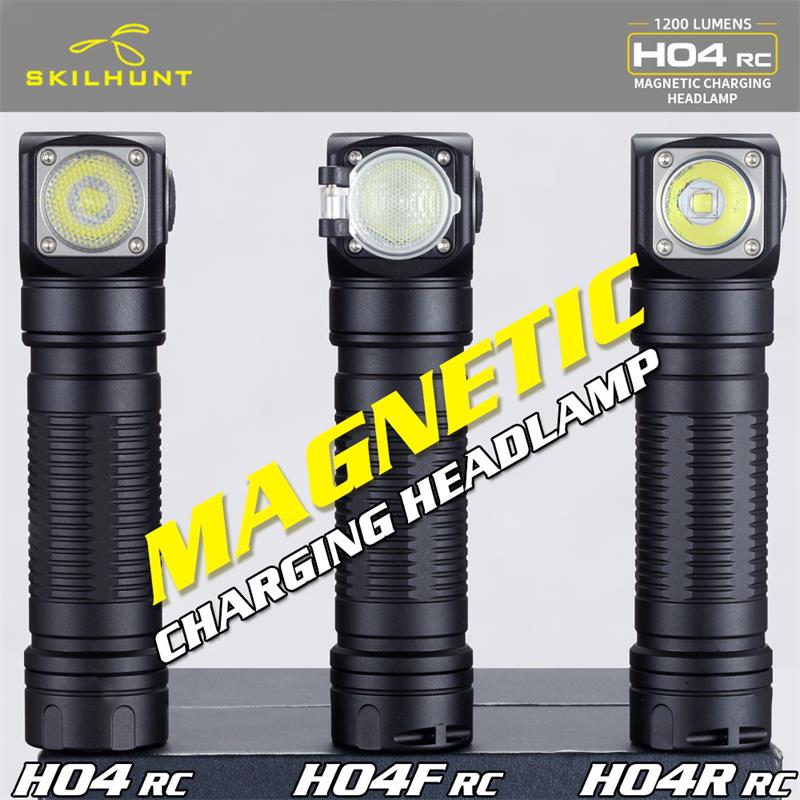

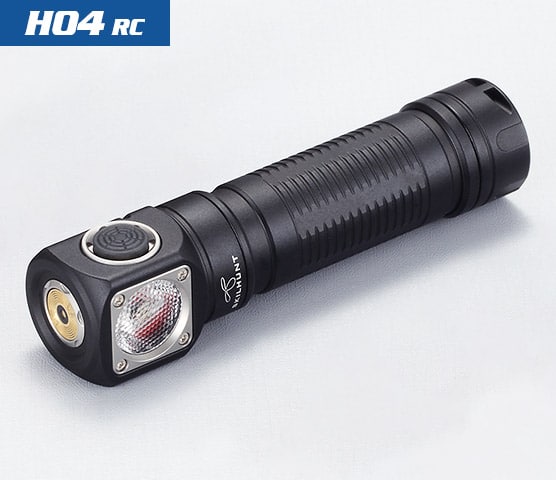

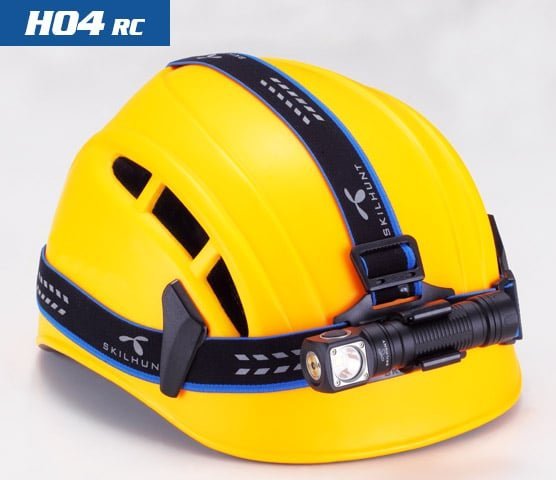

H04 RC USB Magnetic Rechargeable LED headlamp
LED: CREE XP-L2 or XM-L2 CW 6500K NW 5000K / Samsung LH351D 90 CRI 5000K / Nichia 519A High CRI 4500K R9080 / Nichia 519A High CRI 3000K

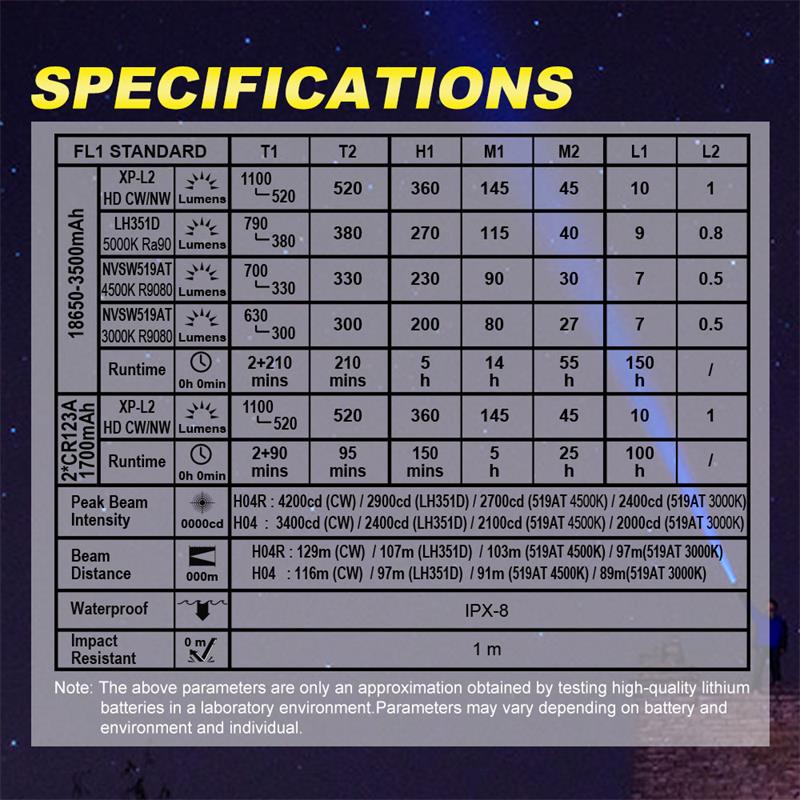

Max output:
ANSI 1000 Lumens / 1200 LED Lumens (CREE XM-L2) /
ANSI 790 Lumens / 950 LED Lumens (Samsung LH351D)
ANSI 700 Lumens / 850 LED Lumens (Nichia 519A)
Max runtime: Few months
Max beam distance: 123 meters
Max peak beam intensity: 3800cd
Waterproof: IPX-8
Impact resistant: 1 Meter

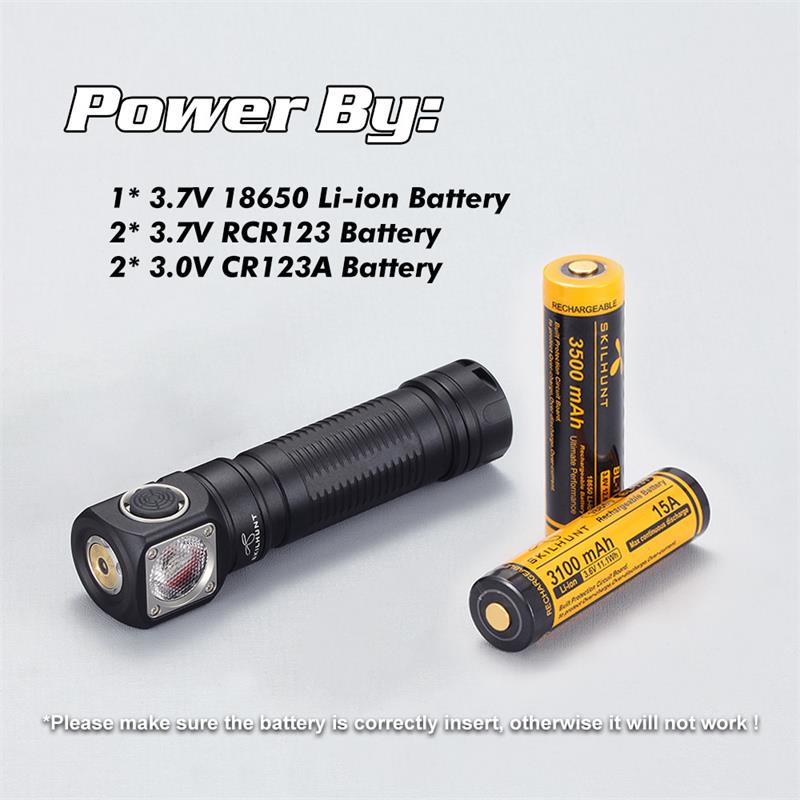

Battery: 1×18650 , 2x CR123A , 2x RCR123A
Rated Range: 2.7V ~ 8.4V

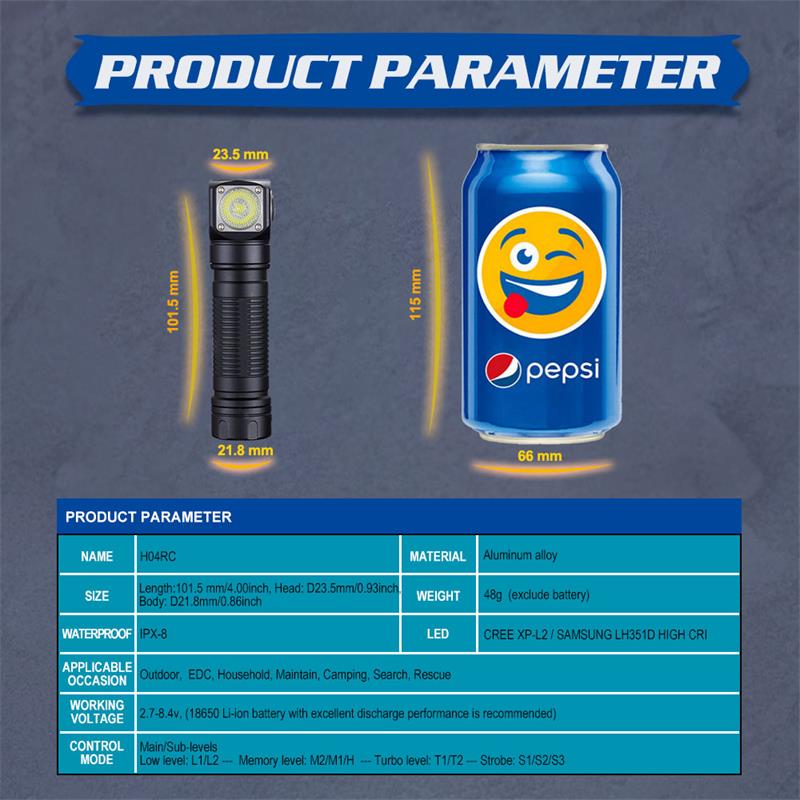

Dimension:
Length 99.9mm / 3.93 inch
Head diameter 23.5mm / 0.93 inch
Body diameter 21.6mm/0.85 inch
Weight: 48g / 1.69oz (without battery)

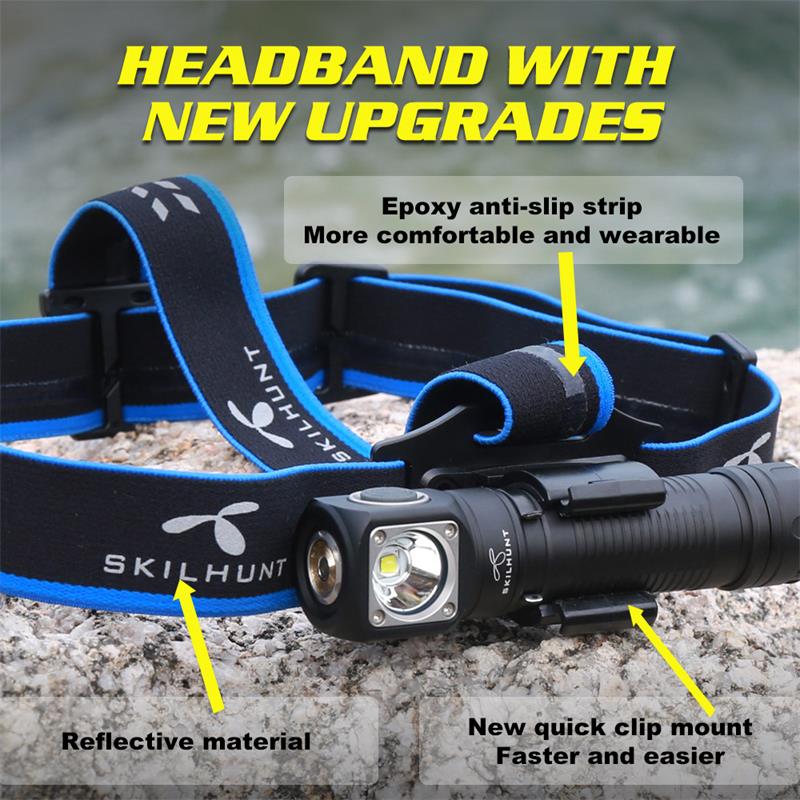

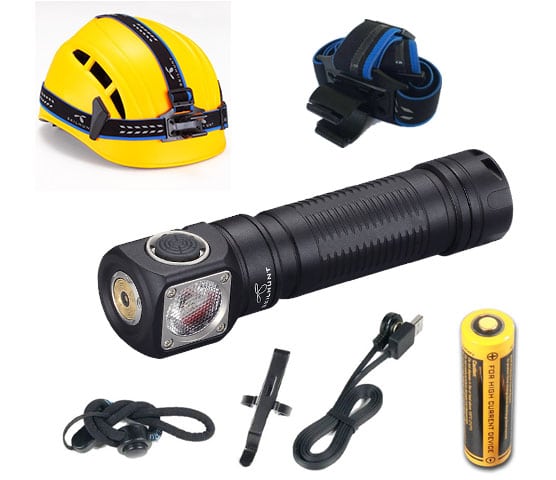

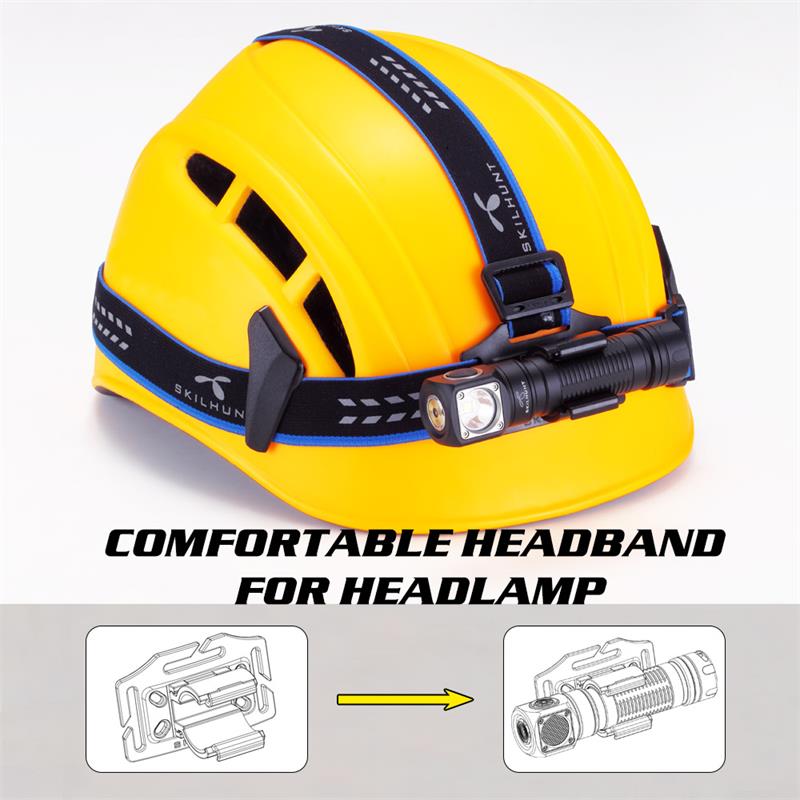

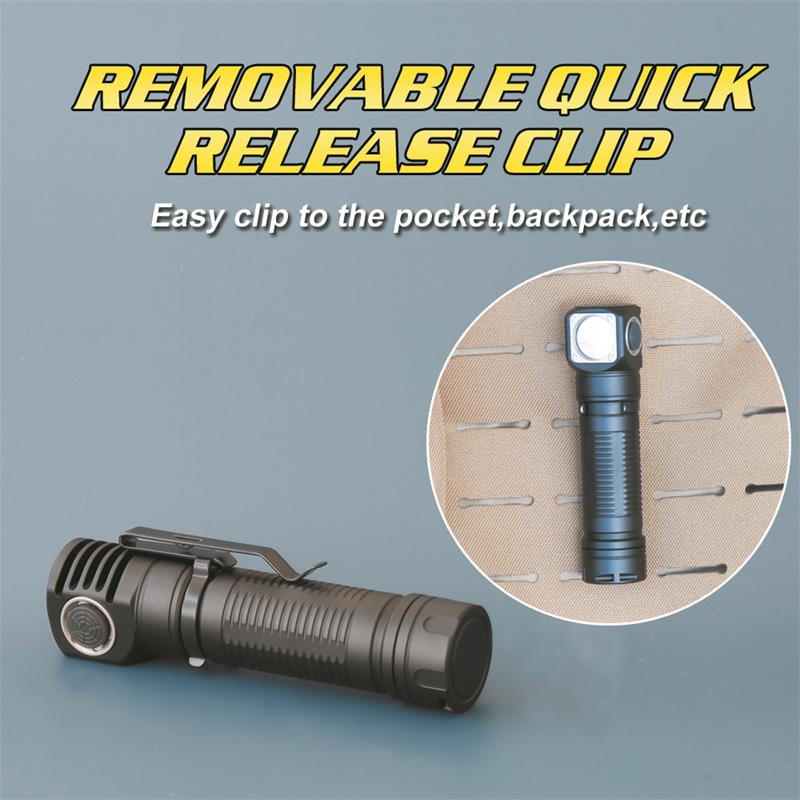

Accessories: Headband, clip, lanyard, magnet replace rubber pad, Operator’s manual, Warranty card, Spare O-ring
Operation
Battery installation & Replace magnet: Insert the battery into the flashlight,the battery positive pole toward the light head.
Ensure batteries are inserted correctly, the flashlight will not operate with incorrectly inserted batteries. Ensure when the light turning on,the beam is directed away from the eyes.
When take the light with Bankcards(magnetic) or Cell phone,should replaced Magnet with rubber pad.
________________________________________
1.ON/OFF
Single click the side switch to turn the light on/off. When the light is turned off,
it will memorized current brightness level or mode.
2. CHANGE BRIGHTNESS LEVEL
When the flashlight was OFF:
Single click switch to memory level (H-M1-M2).
Quickly double clicks switch to Turbo(T1/T2) mode.
Quickly triple-click switch to Strobe(S1/S2/S3) mode.
Hold press switch 0.5 second to Low(L1/L2) mode.
When the flashlight was ON (T1/T2, H/M1/M2, L1/L2)
Press and hold the switch to automatically cycle, the level is selected when the side
switch has been released, turn off memorized.
When the flashlight was ON (T1/T2, H/M1/M2)
Quickly double clicks switch tranfer memory level(H/M1/M2) to Trubo(T1/T2), repeat
quickly double clicks switch back to memory level(H/M1/M2). Quickly triple clicks switch
transfer Strobe mode, repeat quickly triple clicks switch back to previous mode.
When the flashlight was ON (S1/S2/S3)
Quickly double clicks switch tranfer S1-S2-S3, turn off memorized.

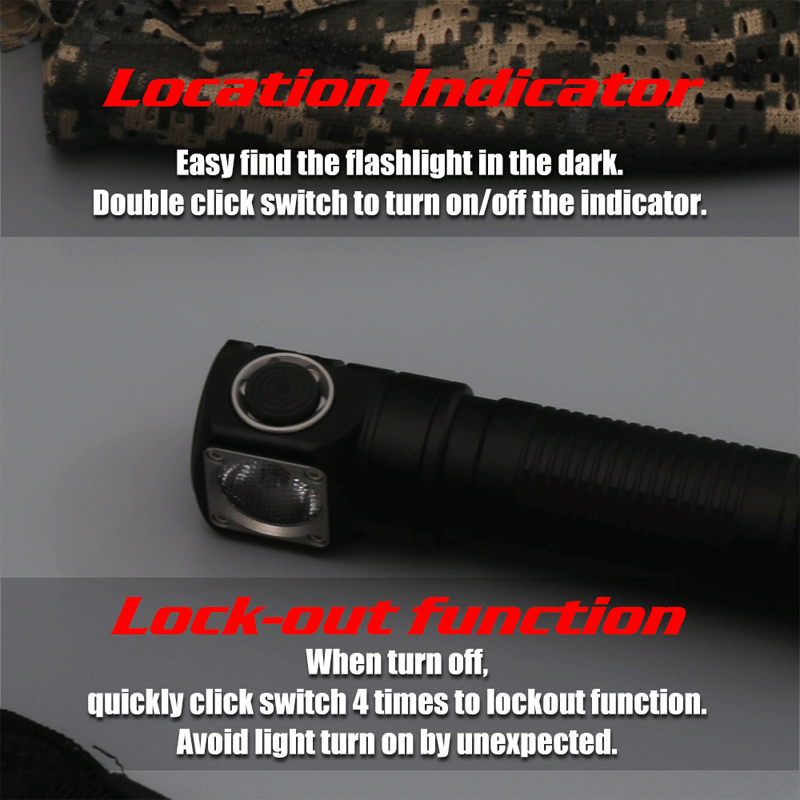

3.LOCK-OUT FUNCTION & LOCATION INDICATOR
When the flashlight is off , quickly click switch 4 times to access the button lockout
mode (location indicator activation at same time,the indicator light flash every second.
Double clicks can turn on/off the indicator). Quickly click switch 4 times,the button
unlock and activate memory Low mode.
4. LOW VOLTAGE INDICATOR
When the battery voltage drops below 3.0V,indicator flash twice every 2 sec,the light
fast flash every 2 Minute at same time.
When the battery voltage drops below 2.7V,the light will cut off.

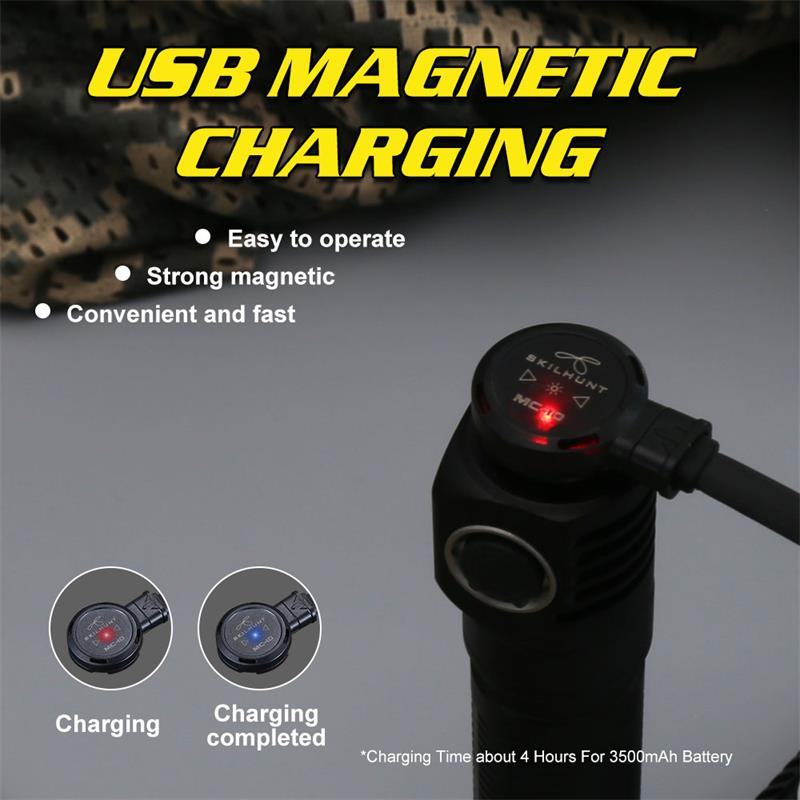

Charging instructions and notices
In charging, the red indicator constant light on, when battery almost full charge, indicator change to constant blue light. When the red indicator flash, please check battery contacts good or not.
Warning: Rechargeable function only for one 18650 (3.6/3.7V) rechargeable lithium battery! Please make sure the battery is correctly insert, otherwise it will damage the charging system.
________________________________________
Features
1.Super bright & latestCREE XM-L2 LED, Max 1200 lumens. High-Performance, High-Efficiency and energy conservation.

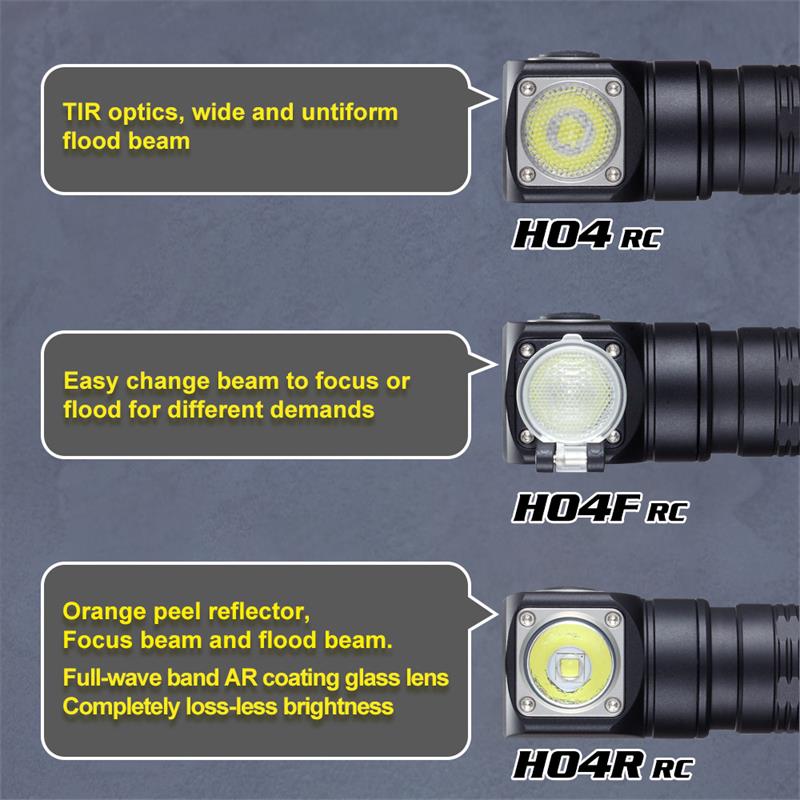

2.New U.D.O.C Reflector. Increased reflectivity over 10%., Efficiency reflection, perfect beamshot, excellent structure and temperature resistance.

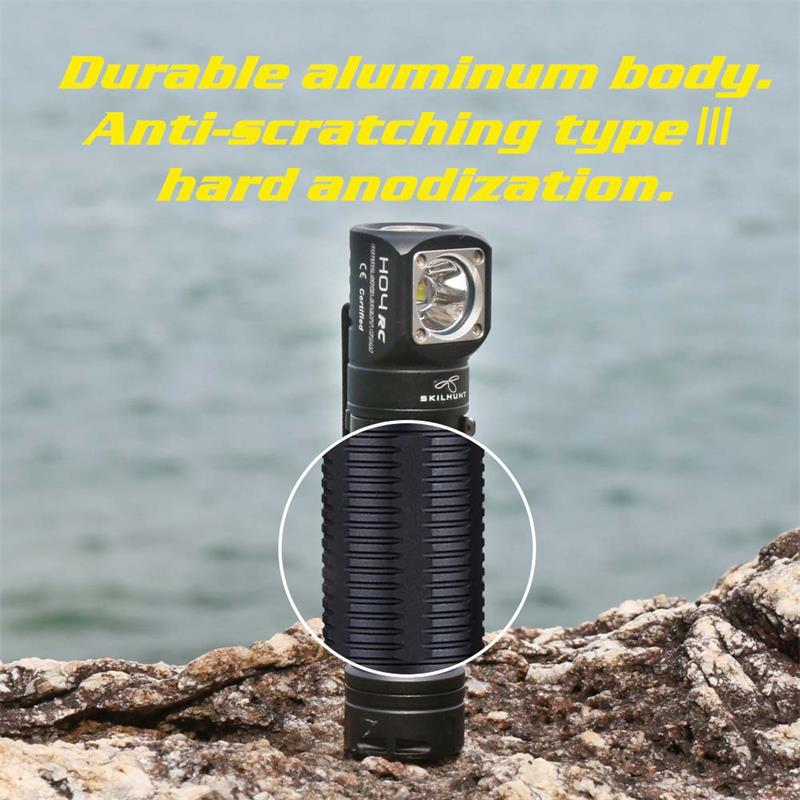

3.Rugged indestructible aluminum body with anti-scratching type III hard anodization
4.Multi-level dissipating heat designand new copper starboard, excellent heat dissipation. Flashlight head integrated construction, high thermal conductivity.
5.Side switch button to transferring mode, user-friendly interface to adjust output.
6.Wide input range provides more choices of batteries. High efficiency driver circuit, no visible flash in any mode.
7.Automatic memory function, remember last used setting and can be preset to specific output mode for instant access.
8.Intelligent temperature control technology for flashlight stable and safe use.
9.Reverse polarity protection, to protect from improper battery installation.
10.When turn off, hold press button to activate lockout function. Avoid light turn on by unexpected.
11.When light lockout, location indicator will flash, easy get the light in dark.

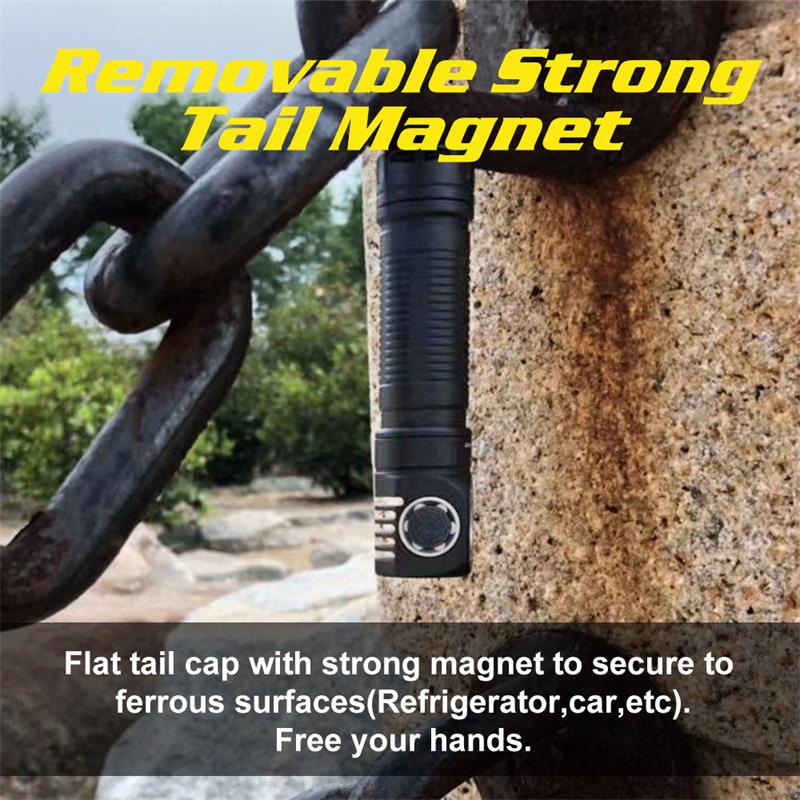

12.Magnetic tail, can be used in many special occasions, use as candle light, etc.
Usage and Maintenance
Use quality batteries so as not to damage the light due to leaks or other self-destructive possibilities.
Remove batteries when light will not be used for an extended period or if batteries are discharged.
When using Li-ion batteries,we recommends the use of protected batteries. Clean contacts, threads and O-rings of the flashlight with clean cloth from
time to time when necessary.
Should flickers or doesn’t light up this the most likely cause.
If flashlight is used in wet environment, lubricate O-rings frequently to
maintain watertight seal. inspected and cleaned if necessary.
