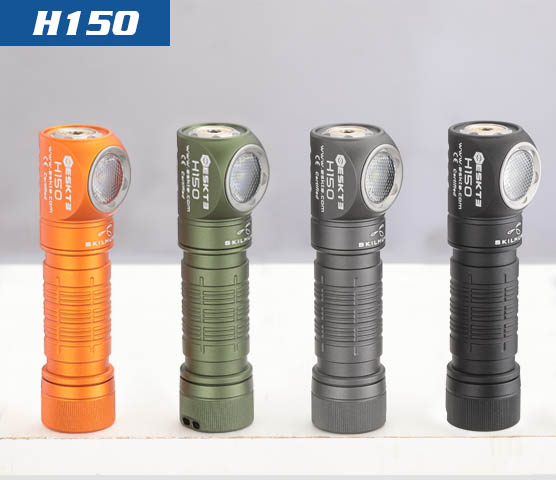

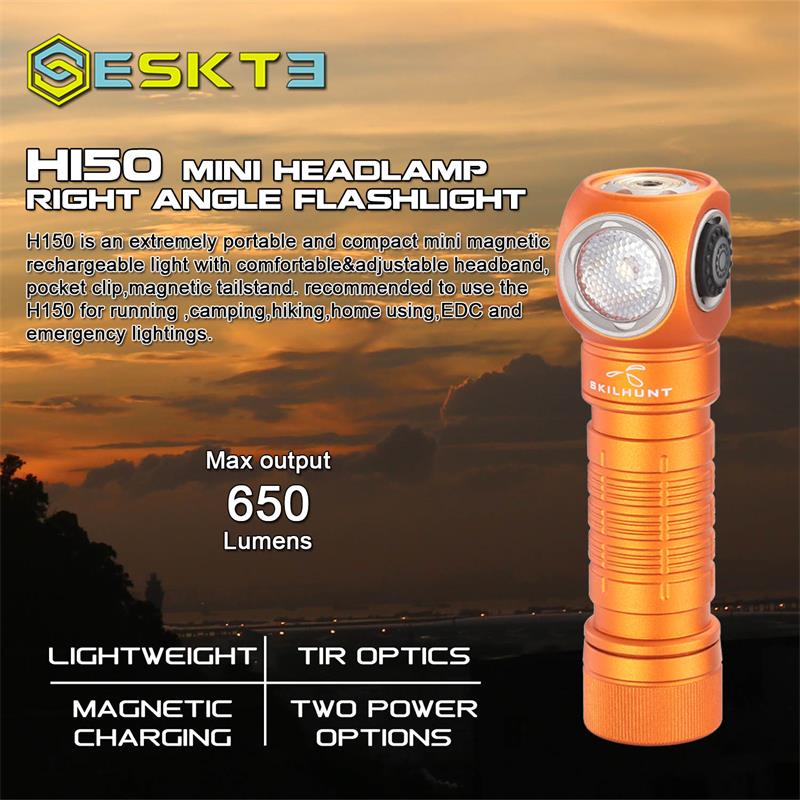

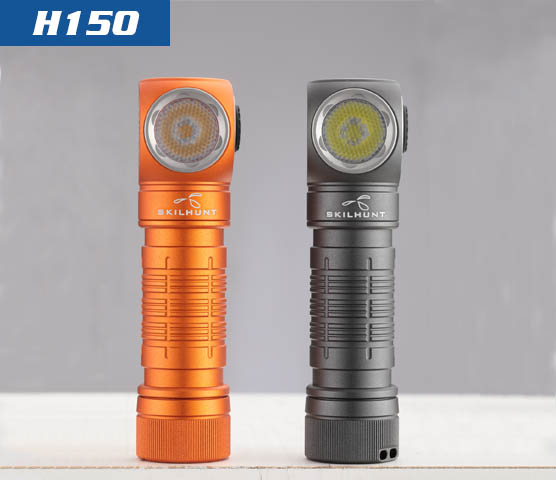

H150 AA/14500 magnetic charging flashlight Headlamp
LED: CREE XP-L2 6500K / Nichia 519A High CRI R9080 4500K
Max output: CREE Cool White ANSI 650 Lumens, Nichia High CRI ANSI 480 Lumens
Max runtime: 55 days
Quiescent Current : 15~20μA （14500 battery) ; 5μA ( AA battery)

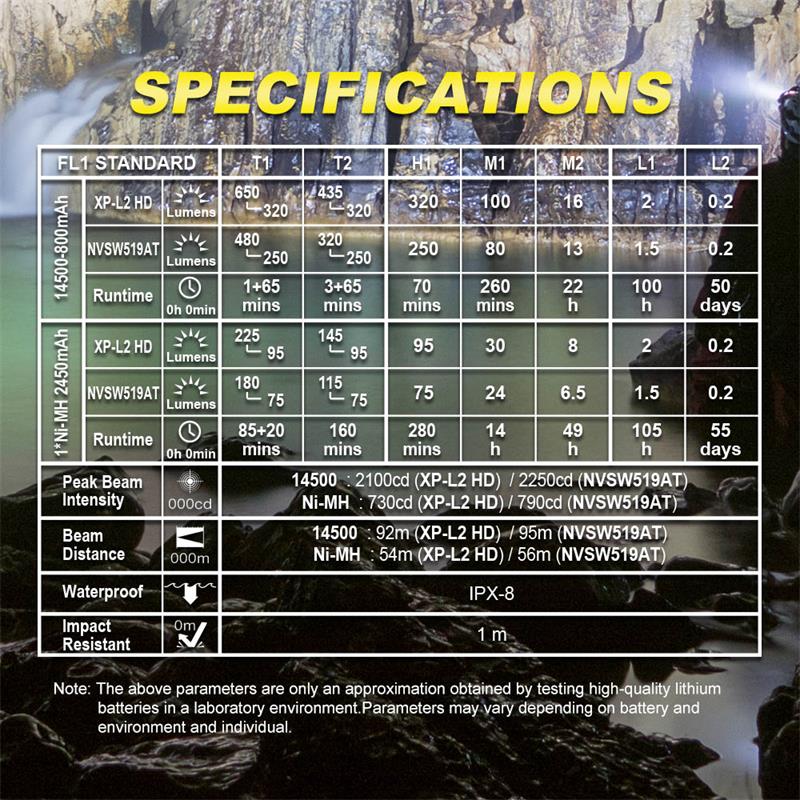

Max beam distance:
14500 : 92m (XP-L2 HD) / 95m (NVSW519AT)
Ni-MH : 54m (XP-L2 HD) / 56m (NVSW519AT)
Max peak beam intensity:
14500 : 2100cd (XP-L2 HD) / 2250cd (NVSW519AT)
Ni-MH : 730cd (XP-L2 HD) / 790cd (NVSW519AT)
Waterproof: IPX-8
Impact resistant: 1 Meter
Battery: 1×14500 , 1x AA
Rated Range: 0.8V ~ 4.2V
Dimension: L79.8mm / 3.14″, Head diameter 21.4mm / 0.84 “.
Weight: 33 g / 1.16 oz (without battery)
Accessories: User manual,Spare O-rings,Lanyard,Clip, Headband, Magnetic Charging Cable .
Operation
1,Battery installation & Replace magnet:
Insert the battery positive pole toward the light head.,otherwise it will not work. When the light turning on,the beam is directed away from the eyes.When take the light with Bankcards(magnetic) or cellphone, should replaced Magnet with rubber pad.
1. ON/OFF
Single click the side switch to turn the light on/off. When the light is turned off,
it will memorized current brightness level or mode.
2. CHANGE BRIGHTNESS LEVEL
When the flashlight was OFF status:
Single click switch to Memory level(H-M1-M2).
Quickly double clicks switch to Trubo(T1/T2).
Quickly triple-click switch to Strobe(S1/S2/S3).
Hold press switch 0.5 second to Low(L1/L2).
When the flashlight was ON (T1/T2, H/M1/M2, L1/L2)
Press and hold the switch to automatically cycle, the level is selected when the side
switch has been released, turn off memorized.
When the flashlight was ON Memory level(H/M1/M2)
Quickly double clicks switch tranfer Memory level to Trubo, repeat quickly double
clicks switch back to Memory level.
Quickly triple clicks switch transfer Strobe, repeat quickly triple clicks switch back to
Memory level.
Quickly click and hold switch tranfer Memory level to Low, repeat quickly click and
hold switch back to Memory level.
When the flashlight was ON Strobe(S1/S2/S3)
Quickly double clicks switch tranfer S1-S2-S3, turn off memorized.
3.LOCK-OUT FUNCTION & LOCATION INDICATOR
When the flashlight is off , quickly click switch 4 times to access the button lockout
mode (location indicator activation at same time,the indicator light flash every second.
Double clicks can turn on/off the indicator). Quickly click switch 4 times,the button
unlock and activate memory Low mode.
4. LOW VOLTAGE INDICATOR
When the battery voltage drops below 3.0V, the indicator flashes twice every 2 seconds,
the light fast flash every 2 Minute at same time.
When the battery voltage drops below 2.7V, the light will turn off.
5. Charging instructions and notices:
Connect the magnetic charging cable to an external USB power source,
then attach the other end of the cable to the charging port of the light
(Recommeded USB power no less than 5W (5V 1A) )
The red indicator means charging, when the battery charging completed,
change to blue indicator.
!!! Rechargeable function only for one 14500 (3.6V / 3.7V) rechargeable lithium battery!
When the battery is incorrectly insert the light,charging will damage the charging circuit.
Features
1.Super bright & latest LED, Max 650 lumens. High-Performance, High-Efficiency and energy conservation.
2.New U.D.O.C Reflector. Increased reflectivity over 10%., Efficiency reflection, perfect beamshot, excellent structure and temperature resistance.
3.Built-in magnetic charging system, fast charge and convenient.
4.Rugged indestructible aluminum body with anti-scratching type III hard anodization
5.Multi-level dissipating heat designand new copper starboard, excellent heat dissipation. Flashlight head integrated construction, high thermal conductivity.
6.Side switch button to transferring mode user-friendly interface to adjust output.
7.Wide input range provides more choices of batteries. High efficiency driver circuit, no visible flash in any mode.
8.Automatic memory function, remember last used setting and can be preset to specific output mode for instant access.
9.Intelligent temperature control technology for flashlight stable and safe use.
10.Reverse polarity protection, to protect from improper battery installation.
11.When turn off, hold press button to activate lockout function. Avoid light turn on by unexpected.
12.When light lockout, location indicator will flash, easy get the light in dark.
13.Magnetic tail, can be used in many special occasions, use as candlelight, etc.
14. Waterproof to IPX-8
Caution:
Please do not point the lighted flashlight to the eyes of people or animals.
Please do not cover the light head when the flashlight is on, or place the flashlight head
on the ground. The radiation energy of the flashlight may cause damage to the flashlight
itself, or even result in burning to other materials.
Please do not use the turbo mode continuously when the environmental temperature is
high in case the flashlight body is too hot to hold.
Please do not put the light with magnetic items such as bank cards and mobile phones.
Notice:
Before operating this product, please read the enclosed User Manual completely.
If the product is left unused or carried and transported, please lock the button or slightly
loosen the tail thread to avoid accidentally activating the flashlight.
When the product is used in a low-temperature environment, please try and keep it warm.
If the temperature is too cold, it may not affect the output and runtime.
Usage and Maintenance
Use quality batteries so as not to damage the light due to leaks or other self-destructive possibilities.
Remove batteries when light will not be used for an extended period or if batteries are discharged.
When using Li-ion batteries,we recommends the use of protected batteries. Clean contacts, threads and O-rings of the flashlight with clean cloth from
time to time when necessary.
Should flickers or doesn’t light up this the most likely cause.
If flashlight is used in wet environment, lubricate O-rings frequently to
maintain watertight seal. inspected and cleaned if necessary.
Products Warranty
1.SKILHUNT warrants our products to be free from defects in materials
and workmanship.
2.Within 15 days of purchase,any defective lights will be offered free
replacement by SKILHUNT distributors unconditionally.except for damage
caused by misuse or insert batteries in wrong way or batteries weeping.
3.Within 24 months from the day of purchase.
SKILHUNT offers free repair after service,except for damages caused by
misuse or insert batteries in wrong way or batteries weeping.
4.Limited lifetime warranty.
SKILHUNT will still provide with warranty service.
Labor is free but we will charge for parts.
The total repair fee is assessed according to the cost of the replaced materials.
Freight should be paid by customers.
5.More details about warranty service,please contact local distributors or dealers
