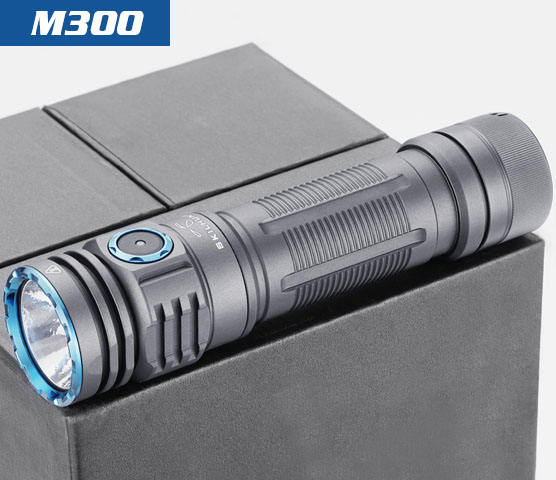

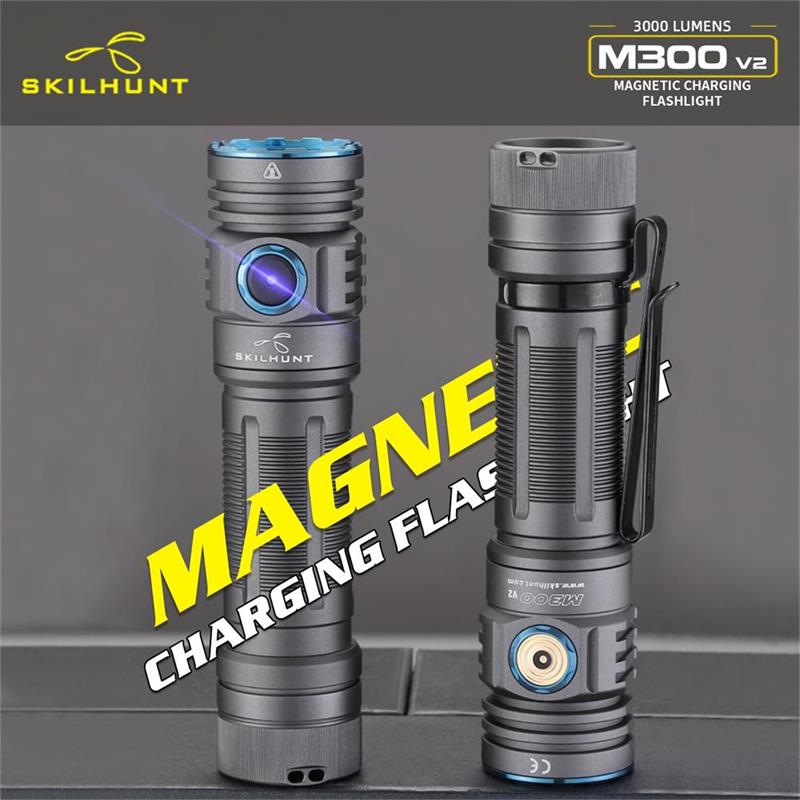

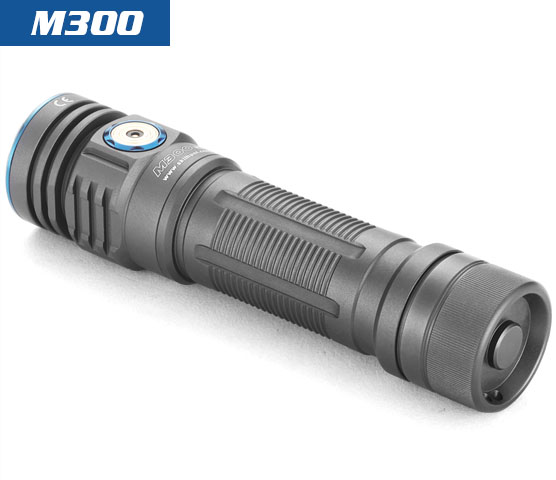

M300 V2 3000 Lumens 21700 Magnetic USB Rechargeable LED Flashlight

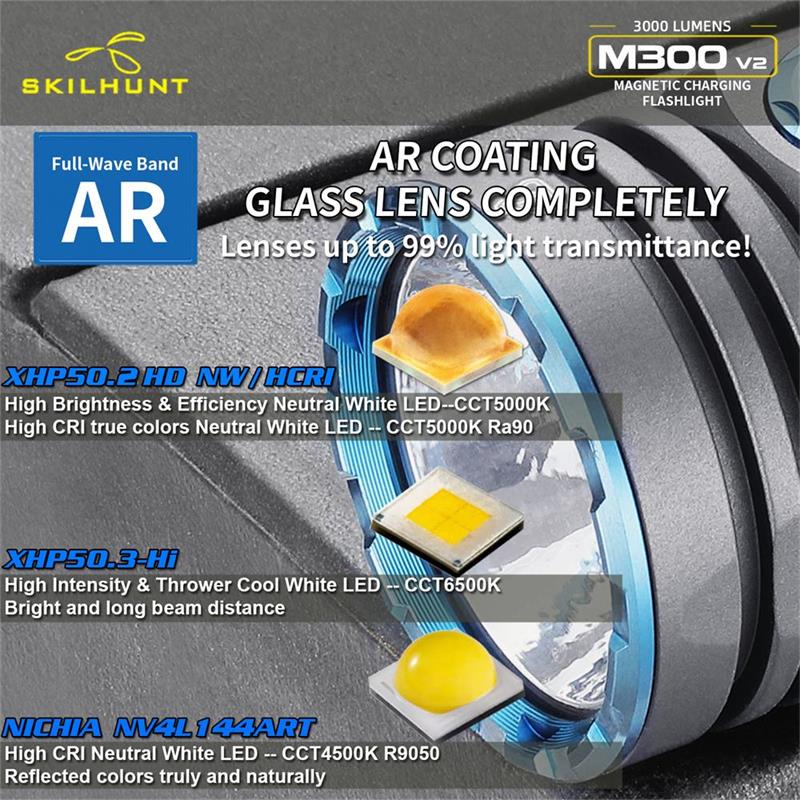

LED:
CREE XHP50.3 HI Cool White 6500K
CREE XHP50.2 HD Neutral White 5000K

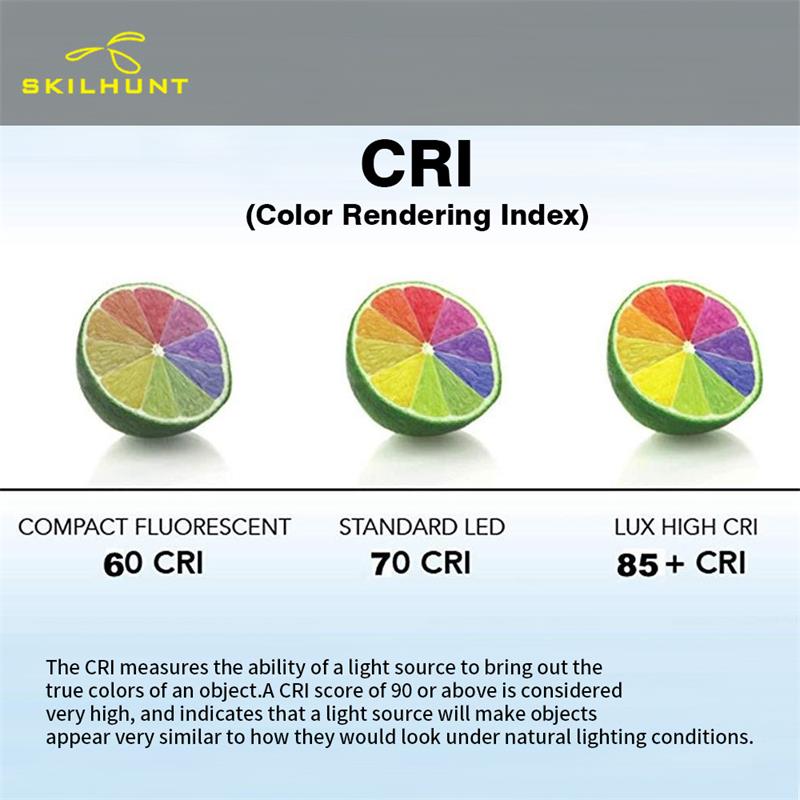

CREE XHP50.2 HD Ra90 High CRI 5000K
Nichia 144ART R9050 4500K

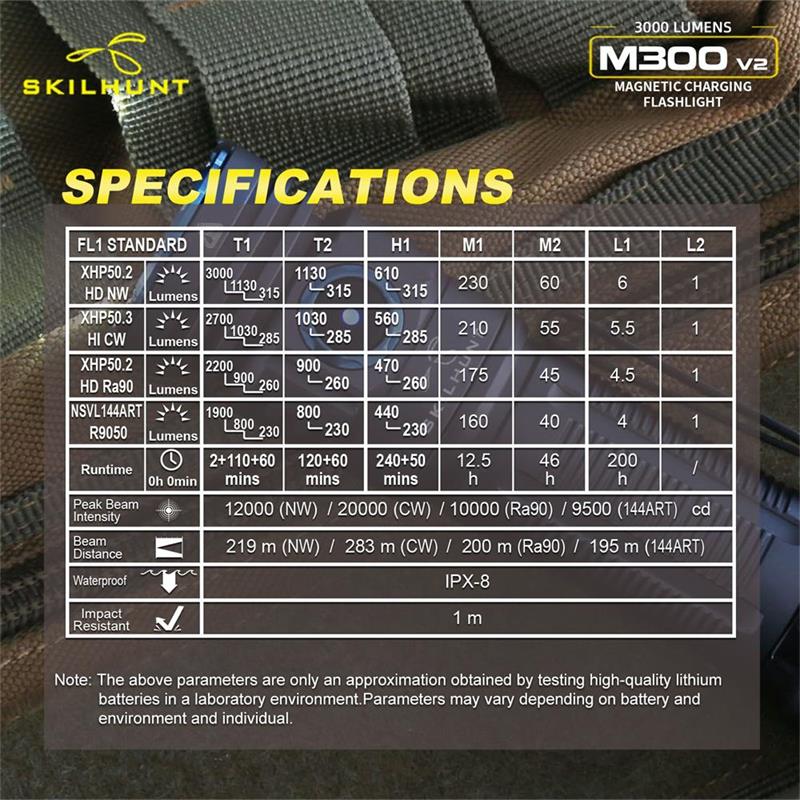

Max output:
CREE HD NW : ANSI 3000 Lumens
CREE HI CW : ANSI 2700 Lumens
CREE HD High CRI : ANSI 2200 Lumens
Nichia High CRI: 1900 ANSI Lumens
Max beam distance:
219 meters(NW) / 283 meters (CW) / 200 meters (Ra90) / 195 meters (144ART)
Max peak beam intensity:
12000 cd (NW) / 20000 cd (CW) / 10000 cd (Ra90) / 9500 cd (144ART)
Quiescent Current ：25 μA

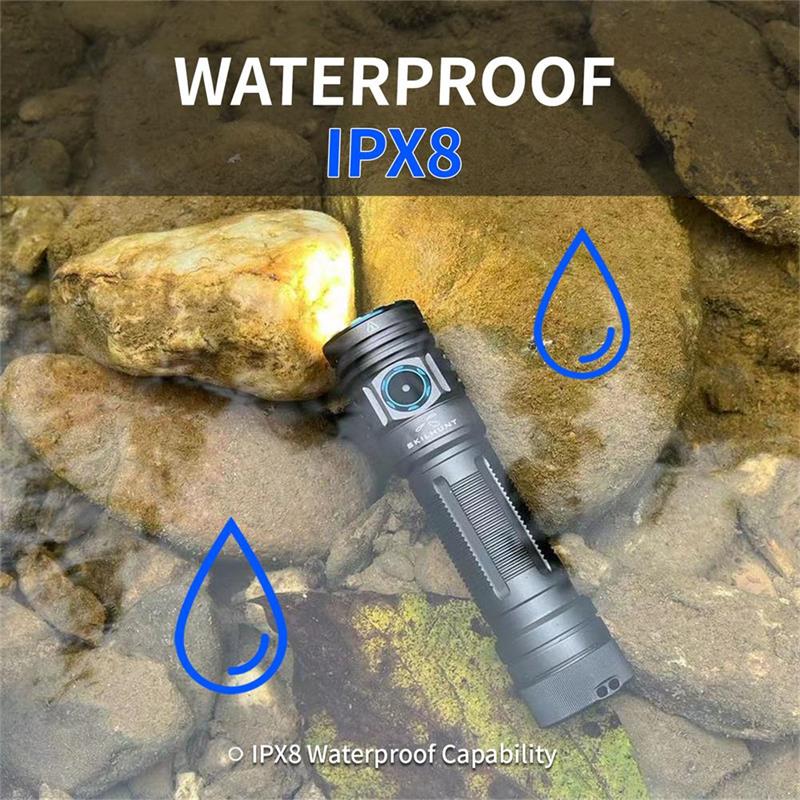

Waterproof: IPX-8
Battery: 1×21700
Rated Range: 2.7V ~ 4.2V

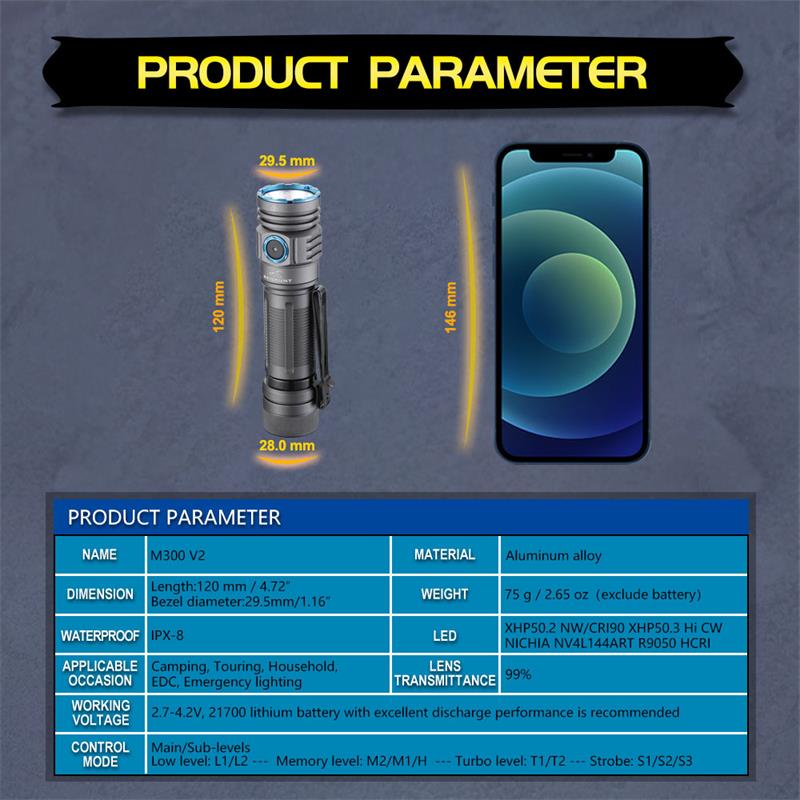

Dimension:
Length 120mm / 4.172 inch
Head diameter 29.5mm / 1.16 inch
Weight: 75 g / 2.65 oz (without battery)

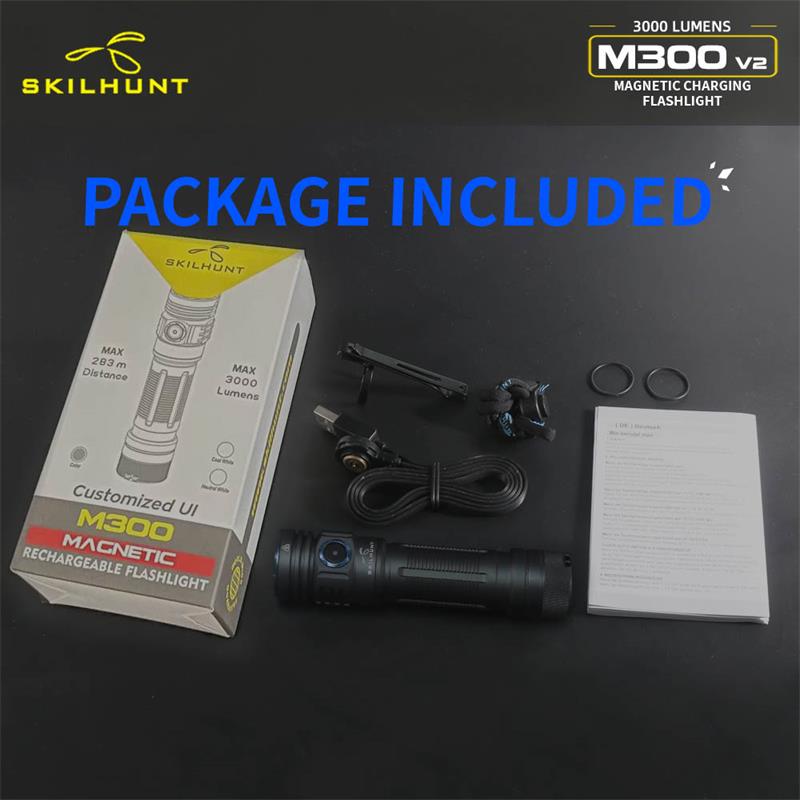

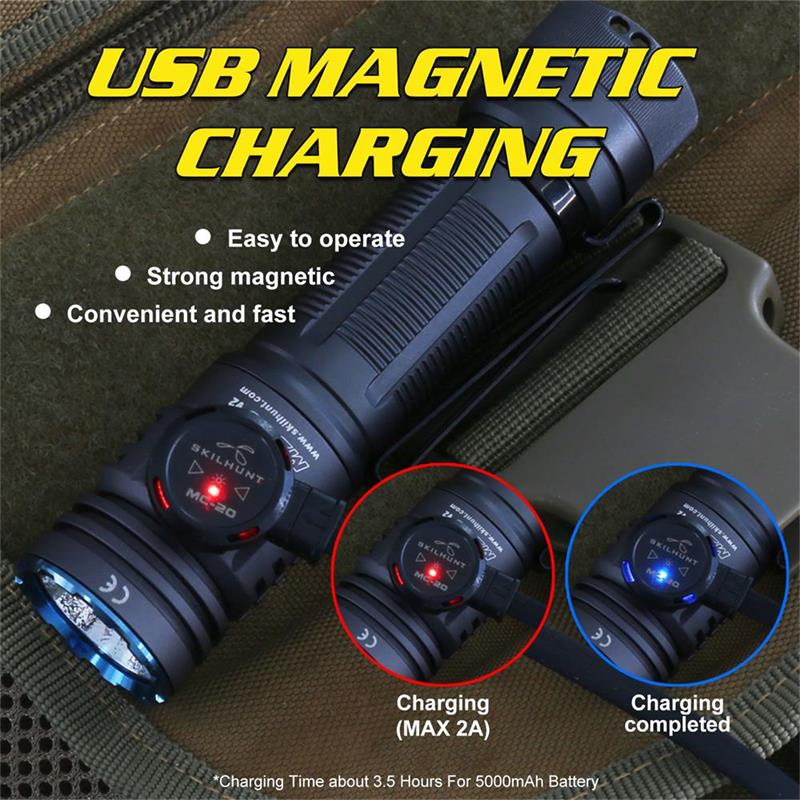

Accessories: 1*M300, Magnetic Charging Cable, Clip, Lanyard, Spare O-rings,User manual.

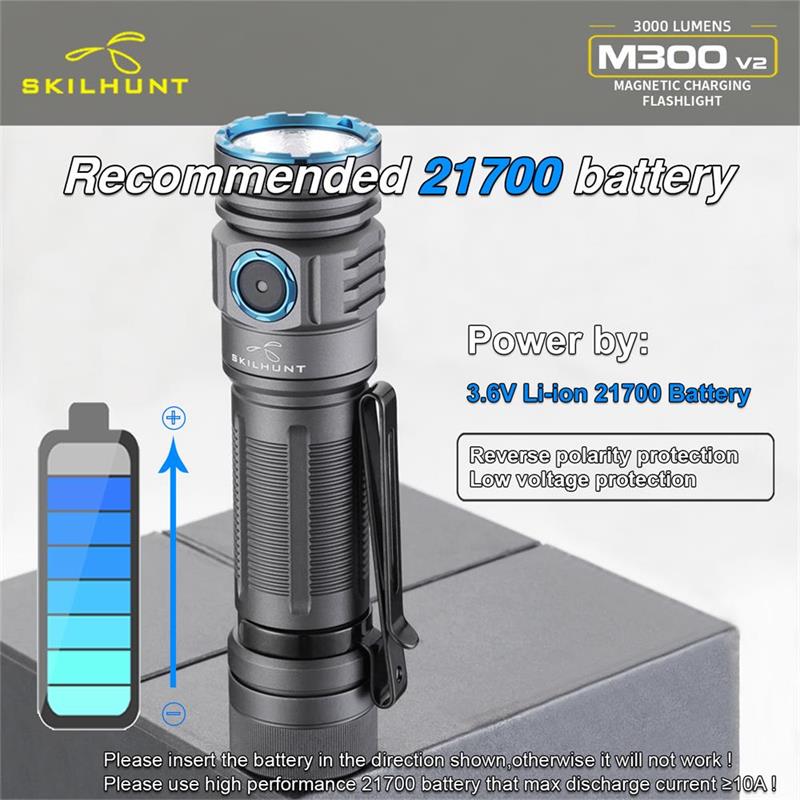

Battery installation
Please make sure that the positive pole of the battery points to the head of the flashlight
when you replace the battery.
Battery installation
Please make sure that the positive pole of the battery points to the head of the flashlight
when you replace the battery.

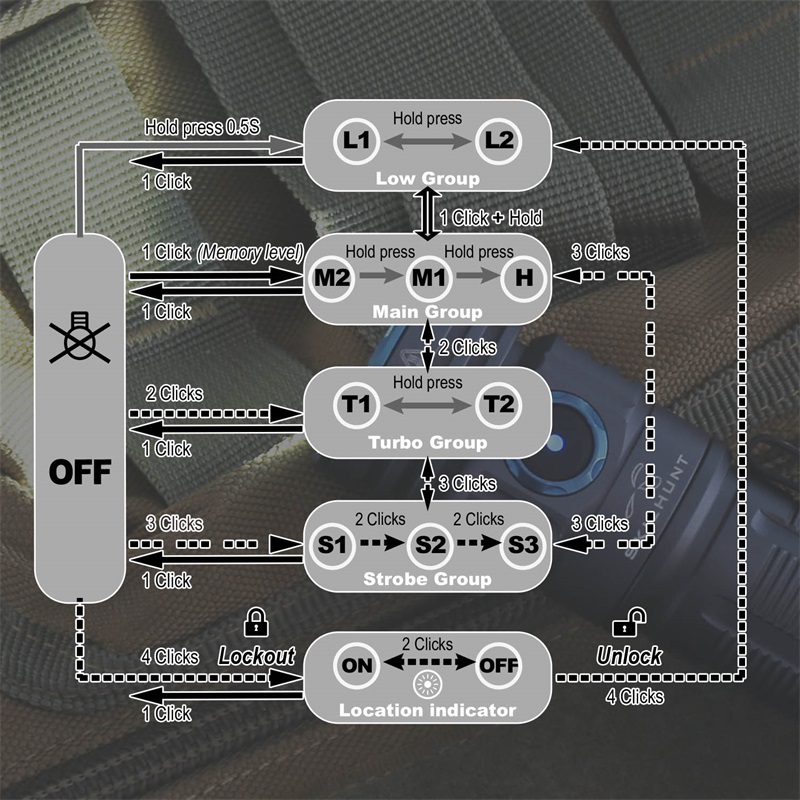

How to use
- ON/OFF
Single click the side switch to turn the light on/off. When the light is turned off, it will memorized current brightness level or mode. - CHANGE BRIGHTNESS LEVEL
When the flashlight was OFF status:
Single click switch to memory level (H-M1-M2).
Quickly double clicks switch to Turbo(T1/T2) mode.
Quickly triple-click switch to Strobe(S1/S2/S3) mode.
Hold press switch 0.5 second to Low(L1/L2) mode.
When the flashlight was ON (T1/T2, H/M1/M2, L1/L2)
Press and hold the switch to automatically cycle, the level is selected when the side
switch has been released, turn off memorized.
When the flashlight was ON (T1/T2, H/M1/M2)
Quickly double clicks switch tranfer memory level(H/M1/M2) to Trubo(T1/T2), repeat
quickly double clicks switch back to memory level(H/M1/M2). Quickly triple clicks switch
transfer Strobe mode, repeat quickly triple clicks switch back to previous mode.
When the flashlight was ON (S1/S2/S3)
Quickly double clicks switch tranfer S1-S2-S3, turn off memorized.

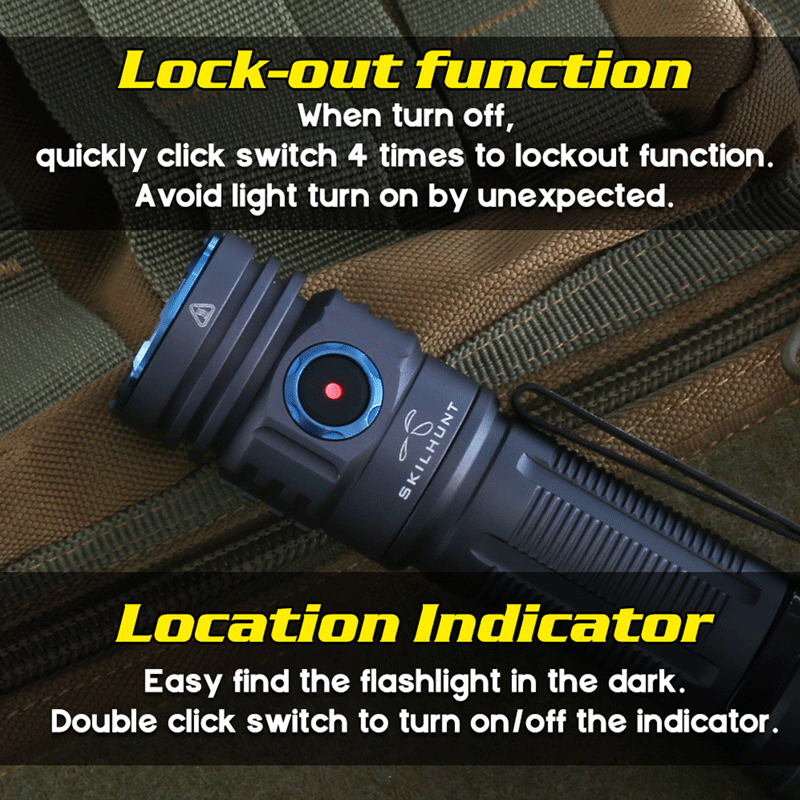

3.LOCK-OUT FUNCTION & LOCATION INDICATOR
When the flashlight is off , quickly click switch 4 times to access the button lockout
mode (location indicator activation at same time,the indicator light flash every second.
Double clicks can turn on/off the indicator). Quickly click switch 4 times,the button
unlock and activate memory Low mode.
- LOW VOLTAGE INDICATOR
When the battery voltage drops below 3.0V, the indicator flashes twice every 2 seconds.
When the battery voltage drops below 2.7V, the light will turn off.
Features
1.Super bright & latest LEDs, More options for LED. Max 3000 Lumens

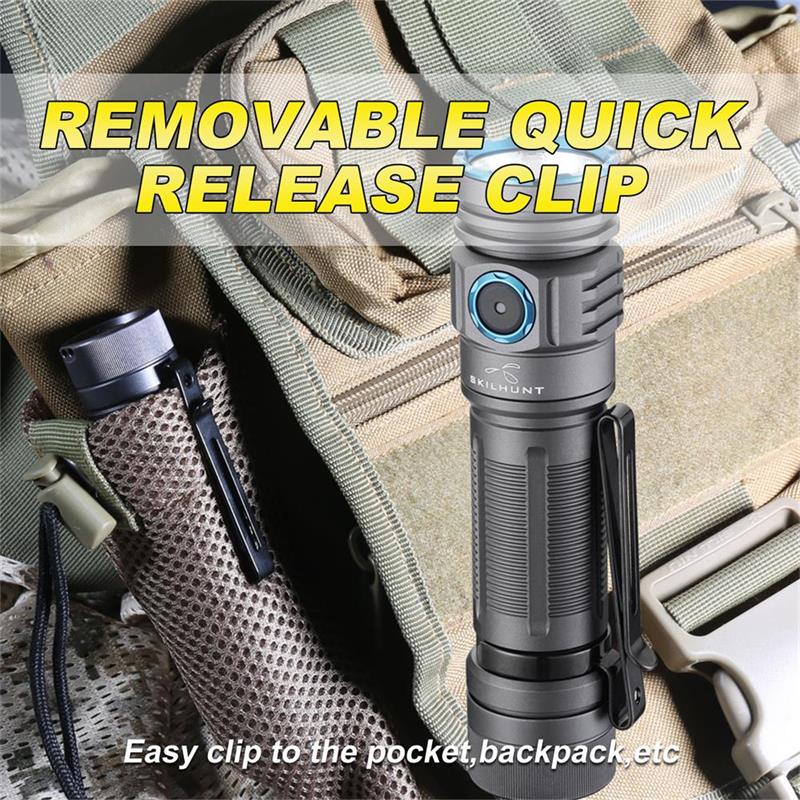

2.Removeable multi-directional pocket clip.

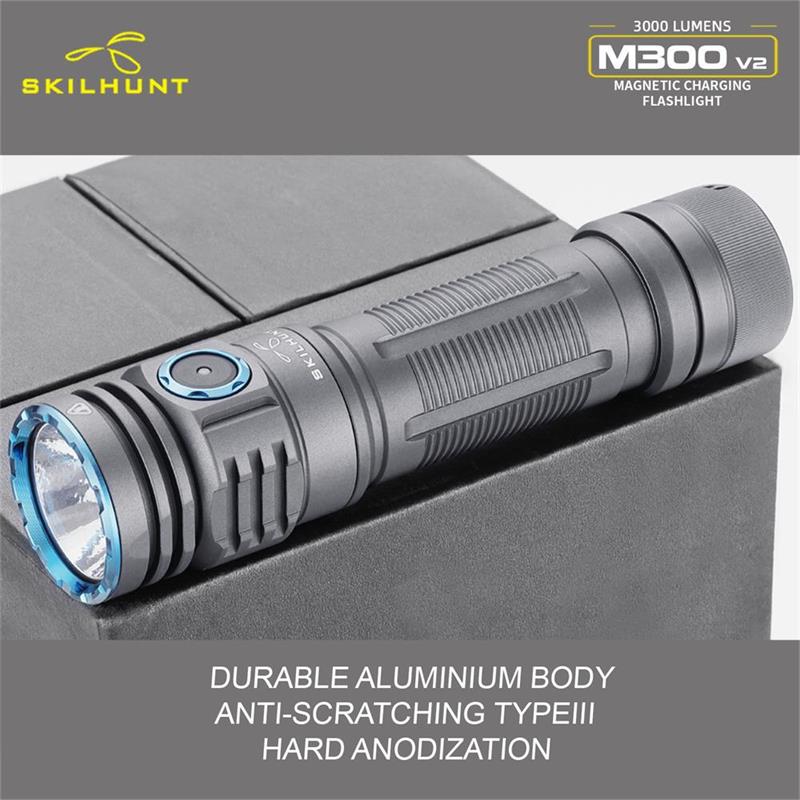

3.Rugged indestructible aluminum body with anti-scratching type III hard anodization
4.Multi-level dissipating heat designand new copper starboard, excellent heat dissipation. Flashlight head integrated construction, high thermal conductivity.
6.Easy to operate multi-function switch

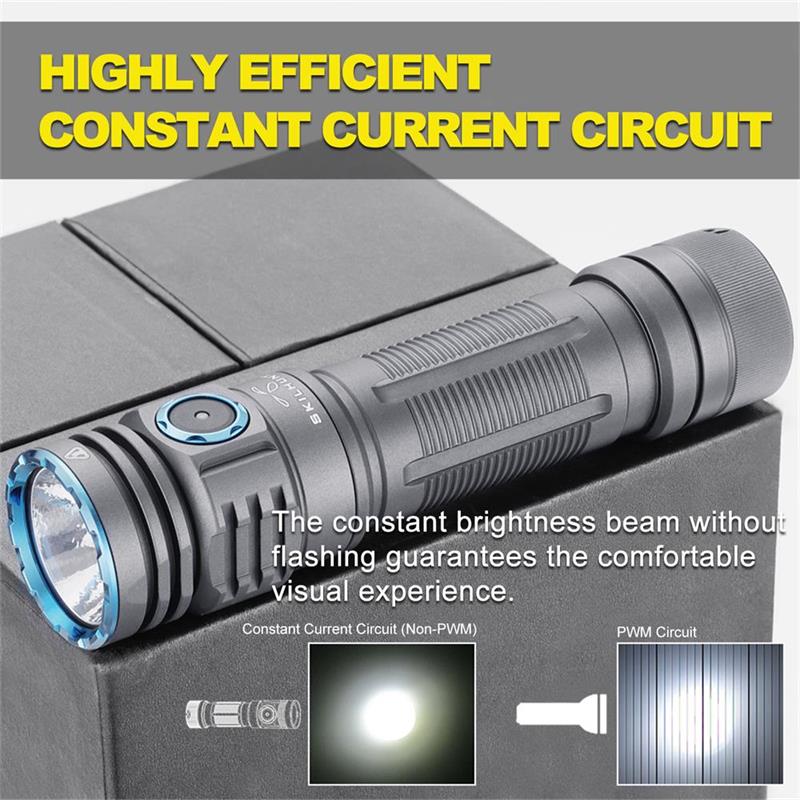

7.Wide input range provides more choices of batteries. High efficiency driver circuit, no visible flash in any mode.
8.Automatic memory function, remember last used setting and can be preset to specific output mode for instant access.
9.Intelligent temperature control technology for flashlight stable and safe use.
10.Reverse polarity protection, to protect from improper battery installation.
11.When light lockout, location indicator will flash, easy get the light in dark.
Note: Please use high drain 21700 battery that max discharge current ≥10A
