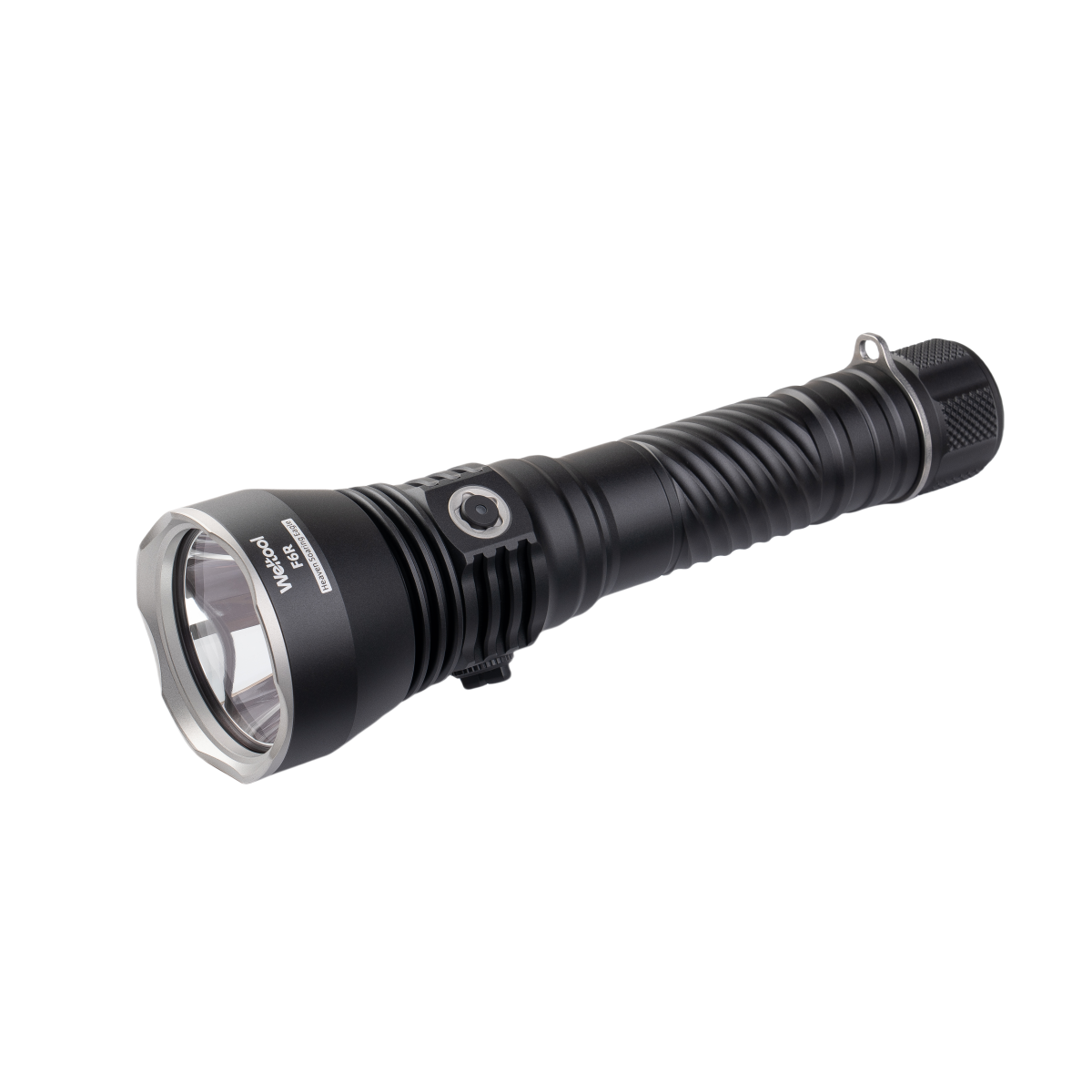

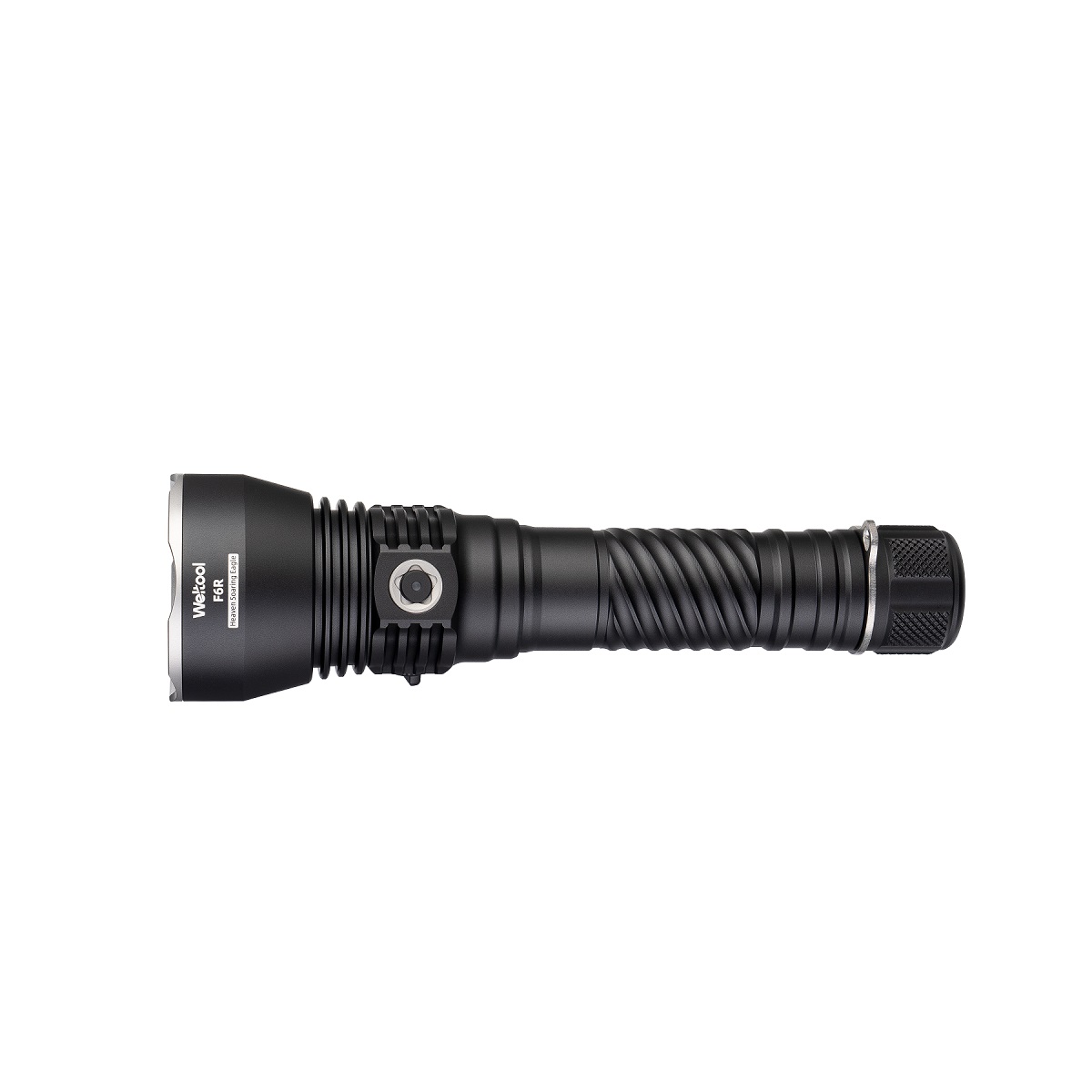

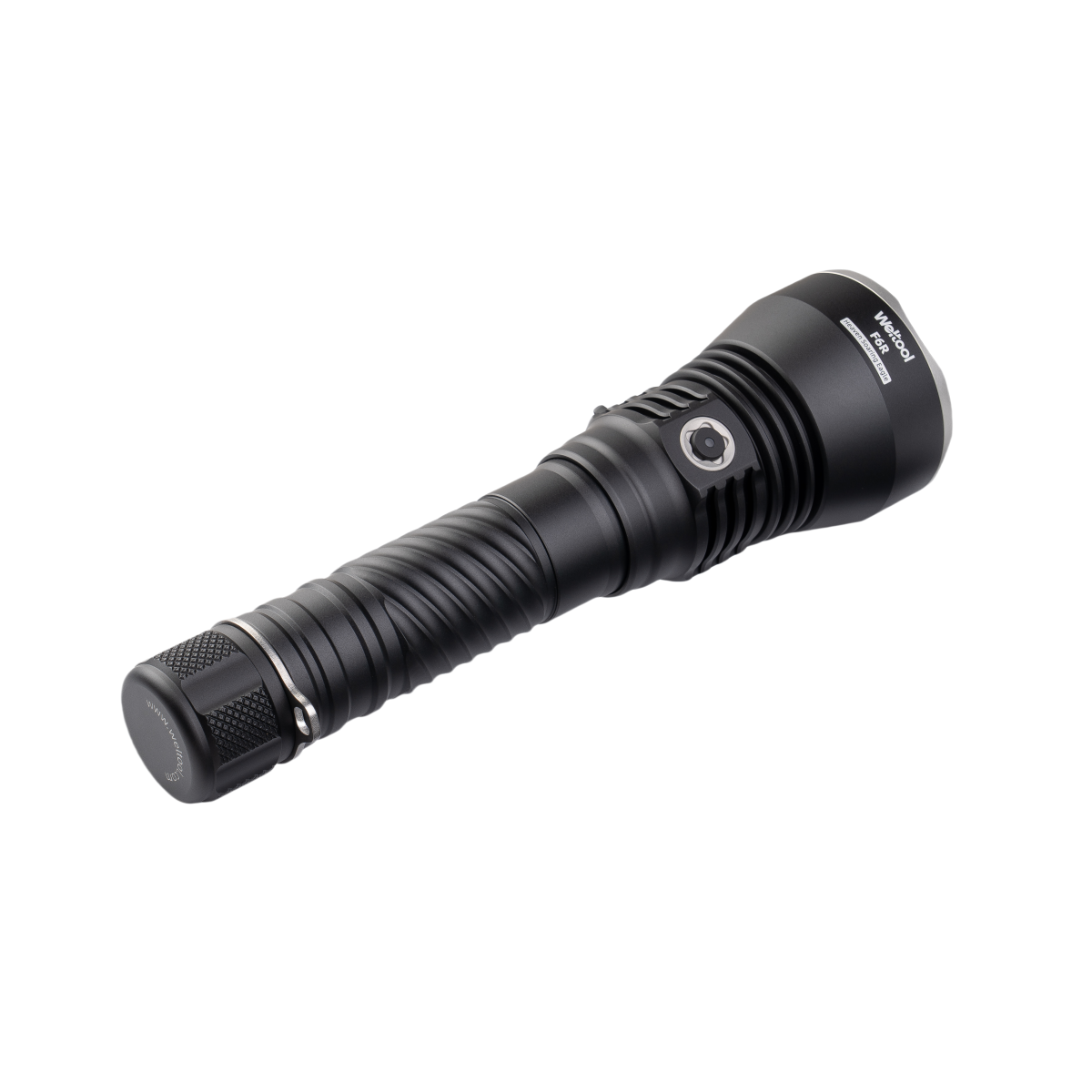

This F6R is a high-lumen and long-range rechargeable flashlight with a turbo output of 5,200 lumens and a throwing distance of 1,202 meters. It comes with a 3.6V 15,000mAh LMFP battery,and its cycle life is twice that of ordinary lithium-ion batteries. The F6R head has a Chinese patented charging structure, which is waterproof and dustproof; the USB-C charging port has a charging indicator light; there is also a stainless steel UNC 1/4″ threaded hole on the Light head, which can be installed on a tripod; there is a stainless steel parachute ring at the end of the flashlight body, which can be equipped with a shoulder strap for easy carrying.

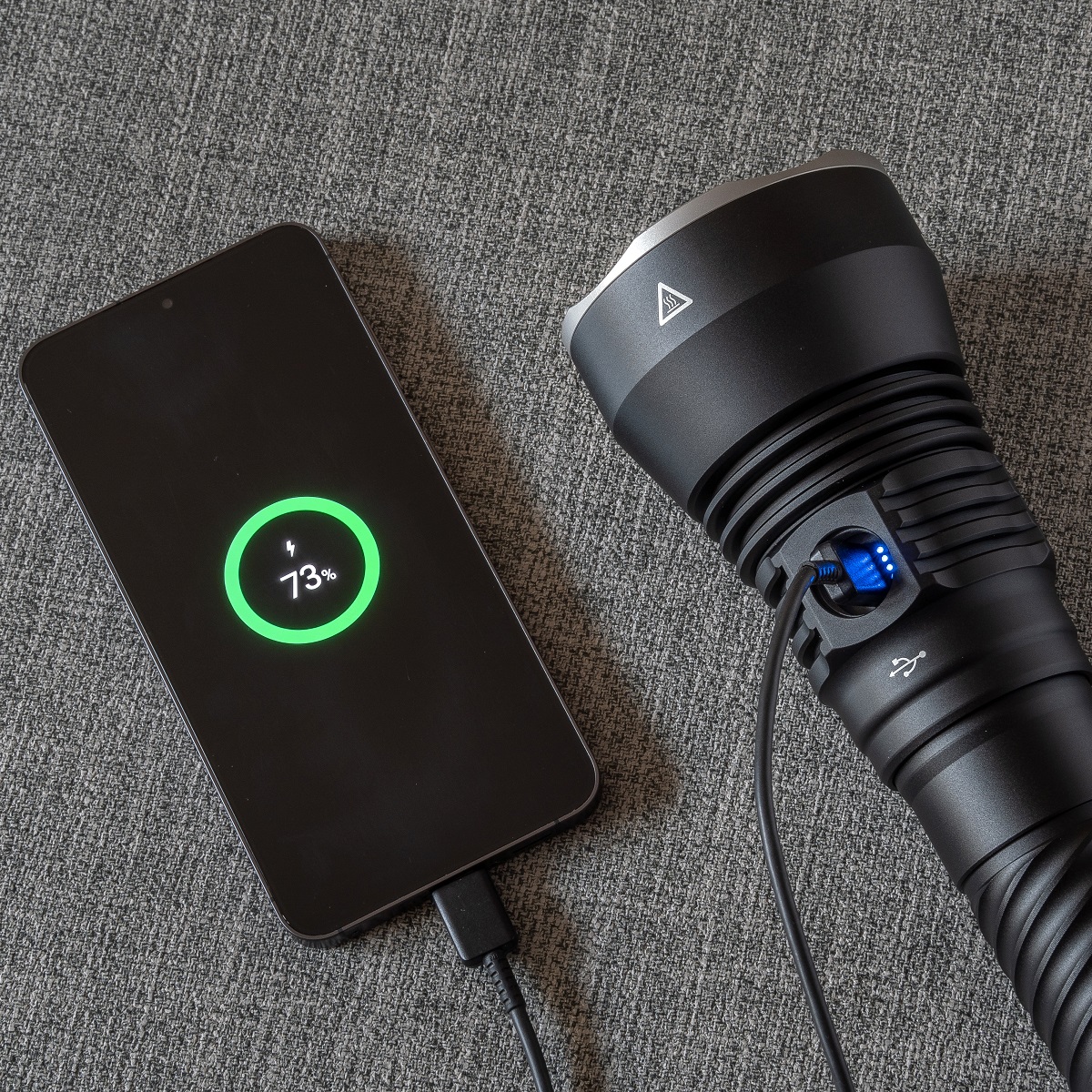

The charging power of F6R can reach 18W, and the USB-C port can output/input. It integrates QC2.0/QC3.0/SCP output protocol, FCP/AFC input and output protocol, TYPE-C/PD2.0/PD3.0 input and output protocol, PPS output protocol, BC1.2/Apple/Samsung’s DCP protocol, and can be used as a power bank to charge mobile phones and other digital products. F6R has 5 modes and strobe; the side-pressed electronic switch has a power indicator light, and the switch can be locked in the off state to prevent accidental touch; F6R has 361,500 candela, which is particularly suitable for search, rescue, outdoor adventure, field operations and other purposes.
Performance and parameters:
-
Aluminum alloy CNC machined, hard anodized surface
-

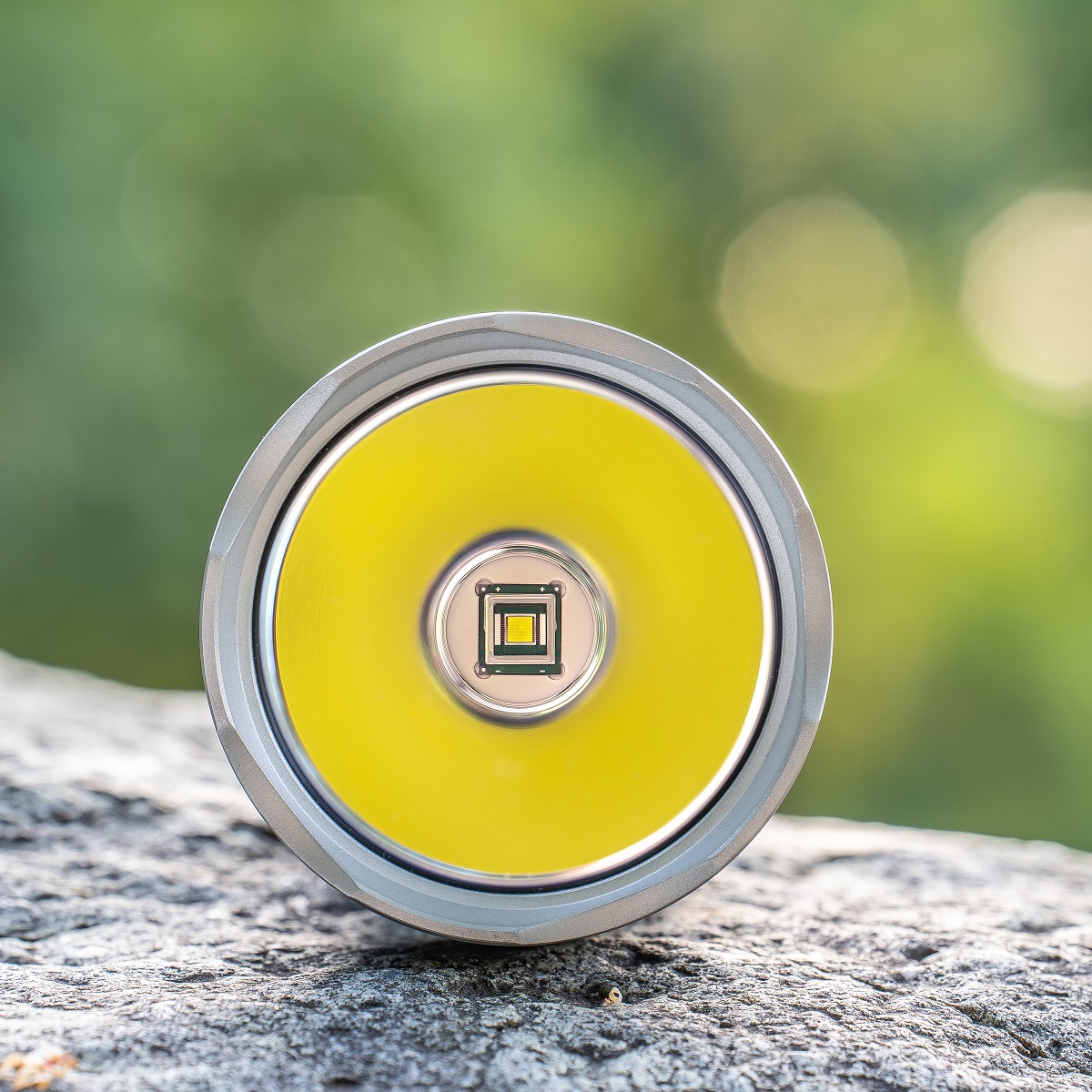

Aluminum alloy reflector, coated tempered glass lens, stainless steel bezel
-
Single high-power white light X-LED light source
-
Output:
| Turbo | High | Med | Low | Eco | Strobe | |
| Output(lumens) |
5,200-1,900 | 3,400-2,160 |
1,900 | 580 | 150 | N/A |
| Intensity | 361,500cd | 222,000cd | 124,200cd |
36,000cd |
10,640cd | N/A |
| Distance |
1,202m | 942m | 704m | 379m | 206m |
N/A |
| Runtime | 4min+2h29min | 8min+2h13min | 3h19min | 11h50min | 47h30min | N/A |
These data are obtained by testing the Weltool IXR33-150 battery at room temperature. Different test environments and conditions will affect the test data and are for reference only.
-
The flashlight has battery over-discharge protection, battery polarity protection, and low voltage reminder functions
-
High power mode with temperature protection function; no flicker, no noise, low standby current
-
USB-C output/input, supports all quick charge protocols such as high-voltage SCP, bidirectional PD3.0, etc.
-

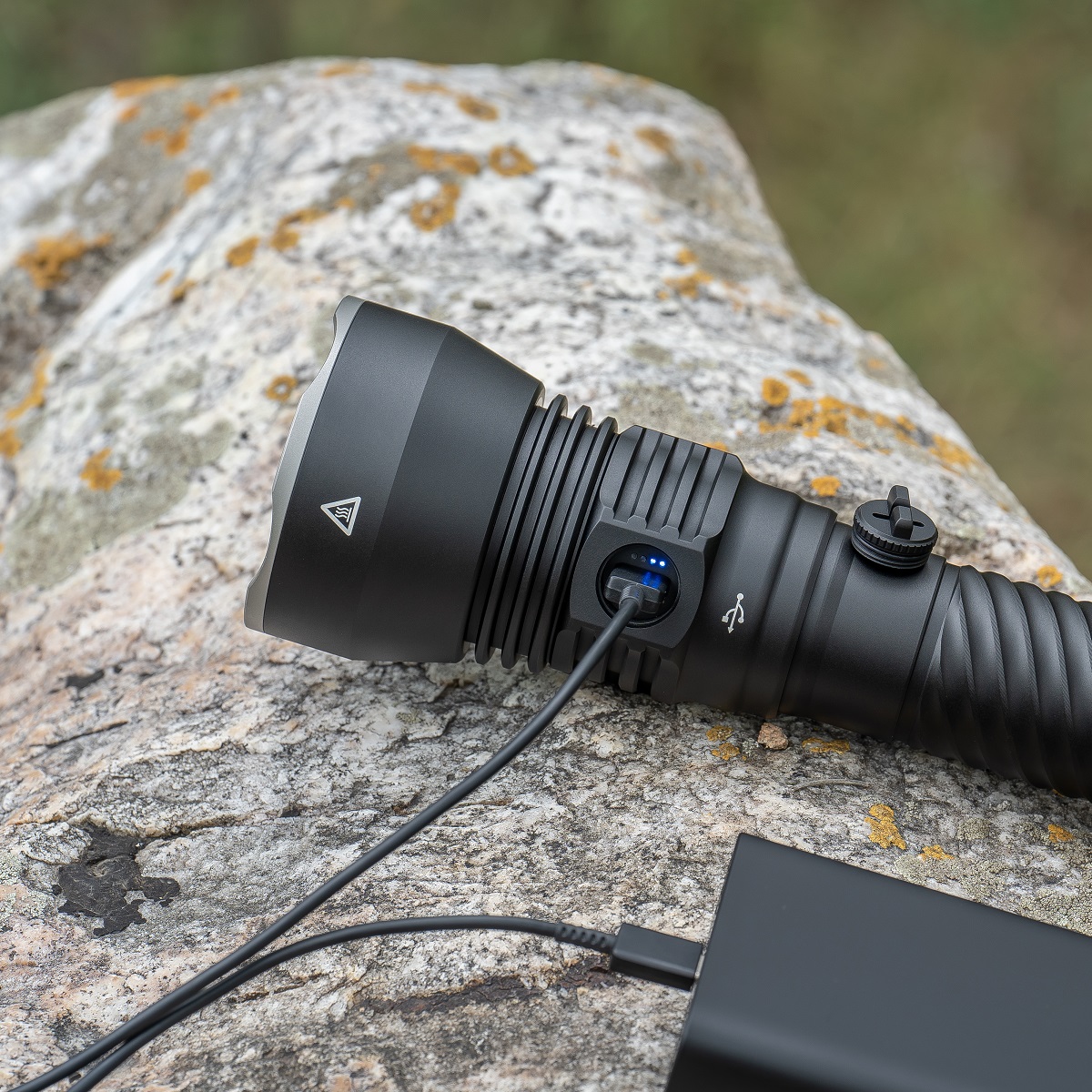

Patented USB charging structure, waterproof and dustproof; USB port waterproof cover with magnet, it can be attached to the flashlight body when charging
-

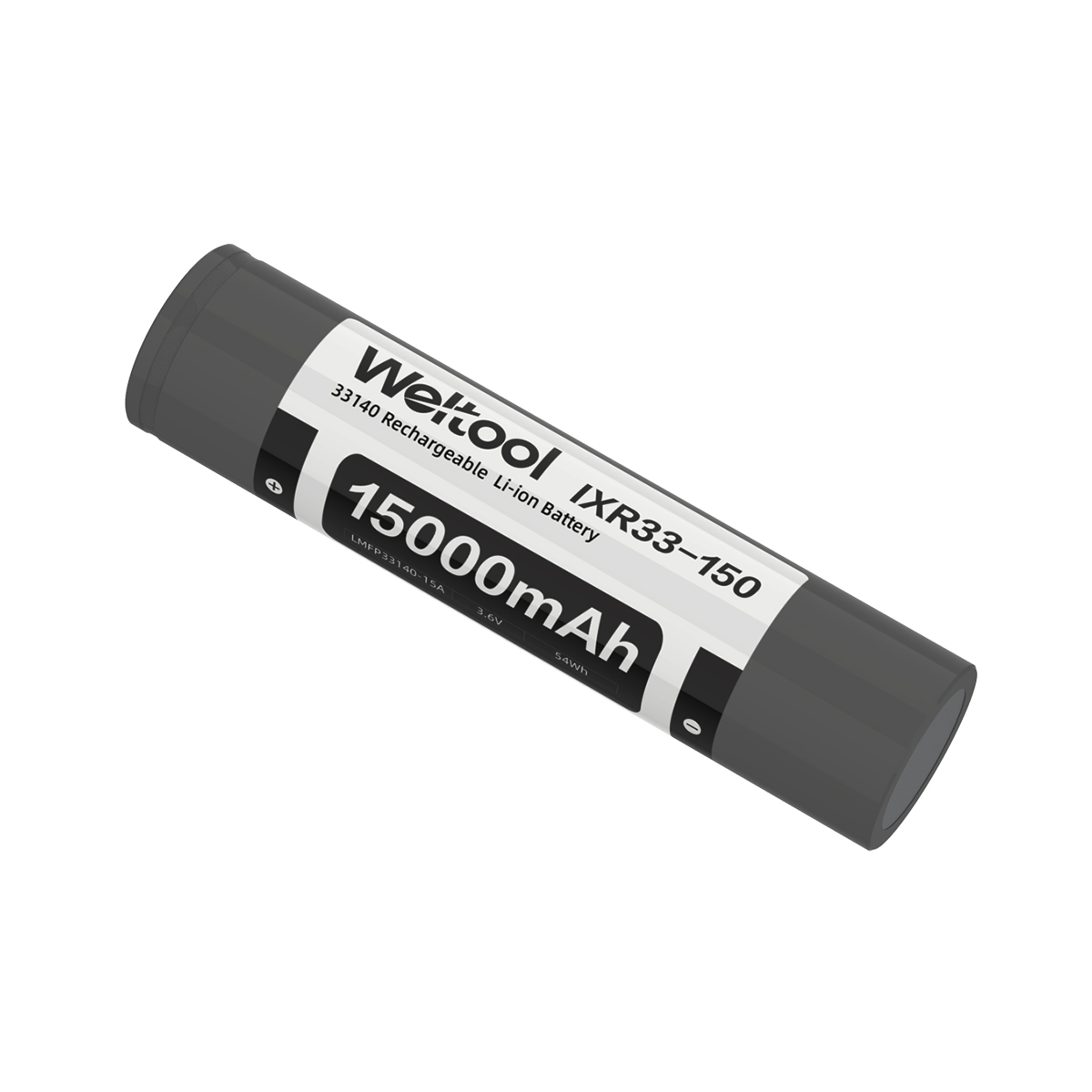

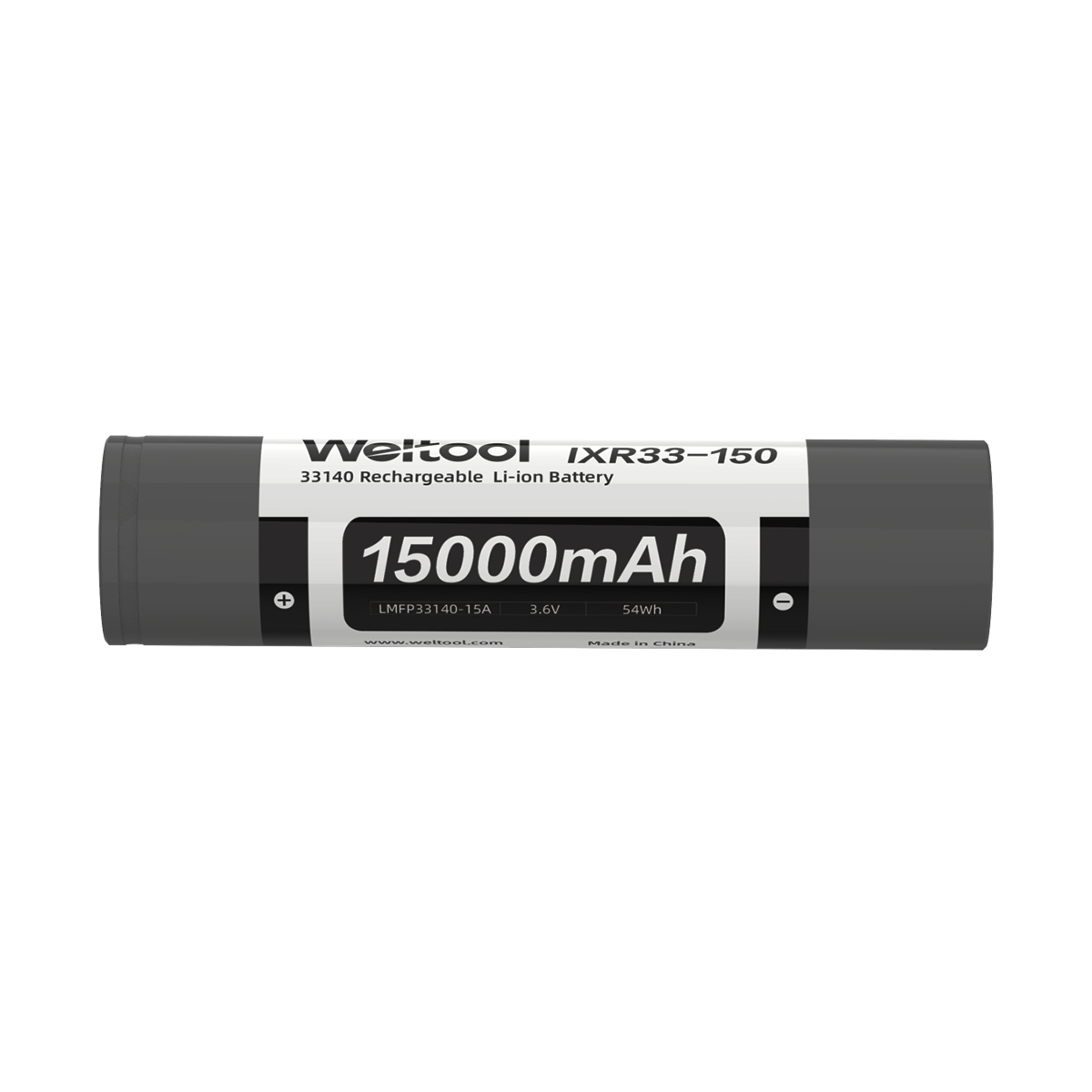

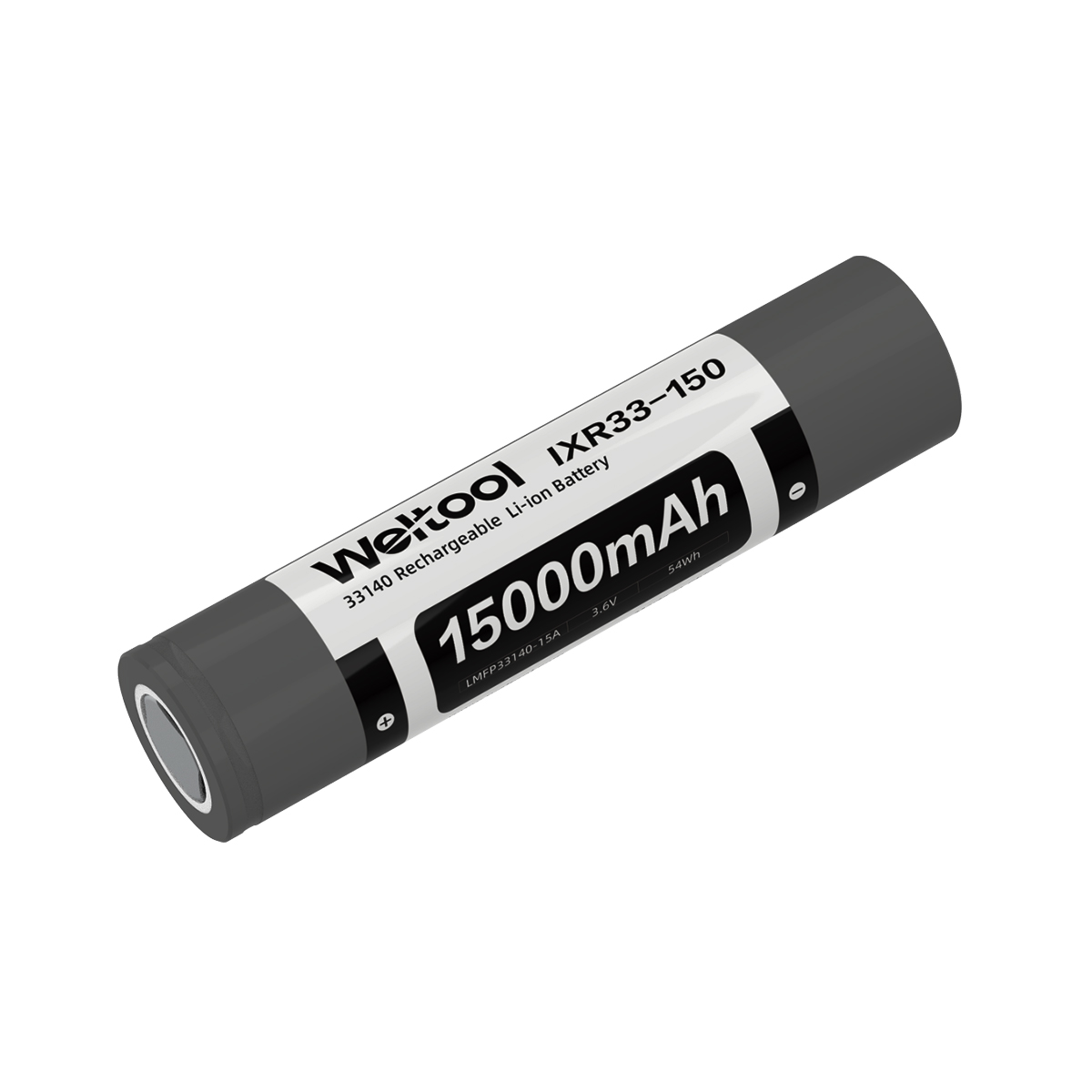

Use 1 IXR33-150 (33140) LMFP battery, 1,500 charge and discharge cycles
-
IP67, can be used in heavy rain
-
This flashlight has passed the 1-meter drop test
-
Each flashlight has an independent serial number
-
Weight: 960±1g (including battery)
-
Dimensions (±0.5mm): (head diameter) 73mm, (body diameter) 39mm, (length) 259.5mm
-

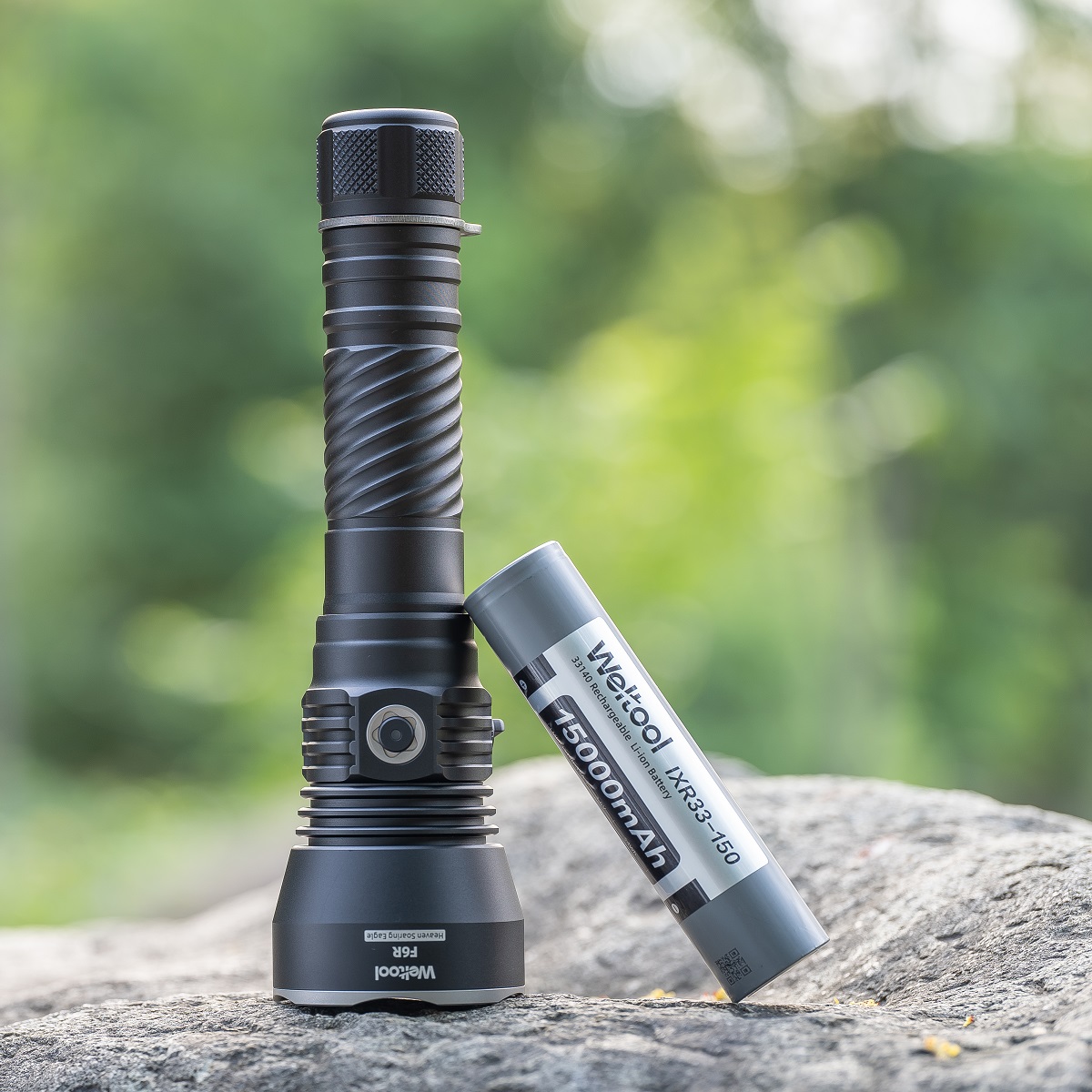

Includes: 1 IXR33-150 (33140) battery, 1 USB-C to USB-C charging cable, O-ring
Operation Instructions:
1. First, install the battery correctly. This product can only use 1 3.6V 33140 lithium-ion battery.
2. The flashlight has a polarity protection function. If it does not work, please check the battery.
3. Press the switch to turn on or off the flashlight. There is a power indicator on the switch button.
4. After turning on the flashlight, press and hold the switch, the flashlight will automatically switch to different modes. Release the switch to select the current mode and keep it on; when it is turned off or in any mode, double-click quickly to enter Turbo, and triple-click quickly to turn on Strobe. After the flashlight is turned off, the mode before turning it off will be remembered (but Turbo and Strobe are not remembered).
5. At the moment of turning on or when the flashlight is working, the power indicator will turn on (green light when the power is sufficient, red light when the power is low, and the indicator will automatically turn off after 5 seconds); when the power is very low, the red light will keep flashing, the main light of the flashlight will also flash, and then the flashlight will turn off at any time.
6. The power can also be detected when the flashlight is locked: press the switch once, and the power indicator will turn on.

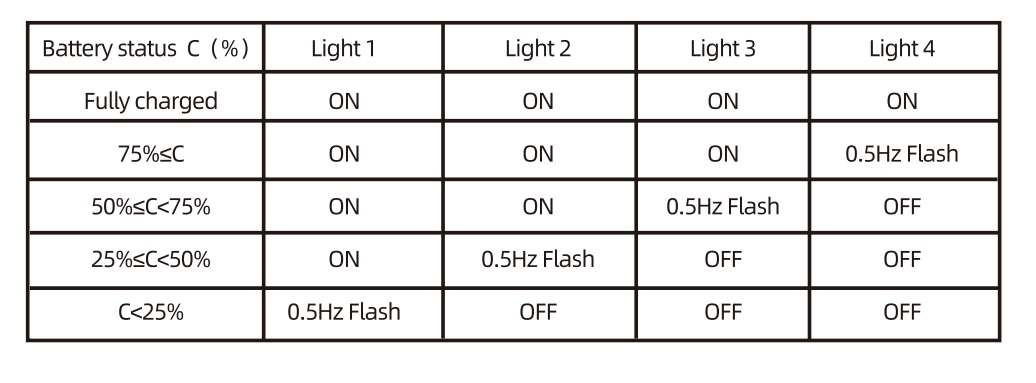

7. The charging port has 4 blue charging status indicators. The display mode of the 4 lights during charging is:
Switch lock and unlock function:
-
Press the switch for more than 2 seconds in the off state to lock. The indicator light on the switch button and the main light of the flashlight will flash 3 times at the same time to indicate that it has been locked; after locking, the flashlight will remember the locked state and the mode before locking. At this time, you need to unlock it when replacing the battery and using it again.
-
After locking, press the switch for more than 2 seconds to unlock. After unlocking, the main light will turn on in memory mode.
Tips:
1. Do not disassemble the parts by yourself, otherwise it will cause the warranty to be invalid and may damage the flashlight.
2. It is normal for the flashlight to heat up when working; but it is not recommended to use the Turbo mode continuously and for a long time. When the hand feels hot, please switch to a lower mode in time to ensure that you will not get burned.
3. When the flashlight is working at high power, please keep away from flammable materials, do not irradiate the eyes and skin, and store away from children.
4. The O-rings at the end of the flashlight body and the waterproof cover may age with the frequency and time of use. Please replace them in time to maintain the waterproof performance.
5. When the flashlight flashes abnormally or does not work, try to clean the conductive contact surface with an alcohol cotton swab.
6. This flashlight has excellent waterproof performance, but it cannot be used for diving.
